THIS IS FOR UPGRADE ONLY from LCD5 (default) in our conversion kits

This is not the actual part

If purchasing a conversion kit, this option allows you to upgrade from the LCD5 to the larger, center mounted LCD3 (Monochrome) Display or LCD8 (Color).

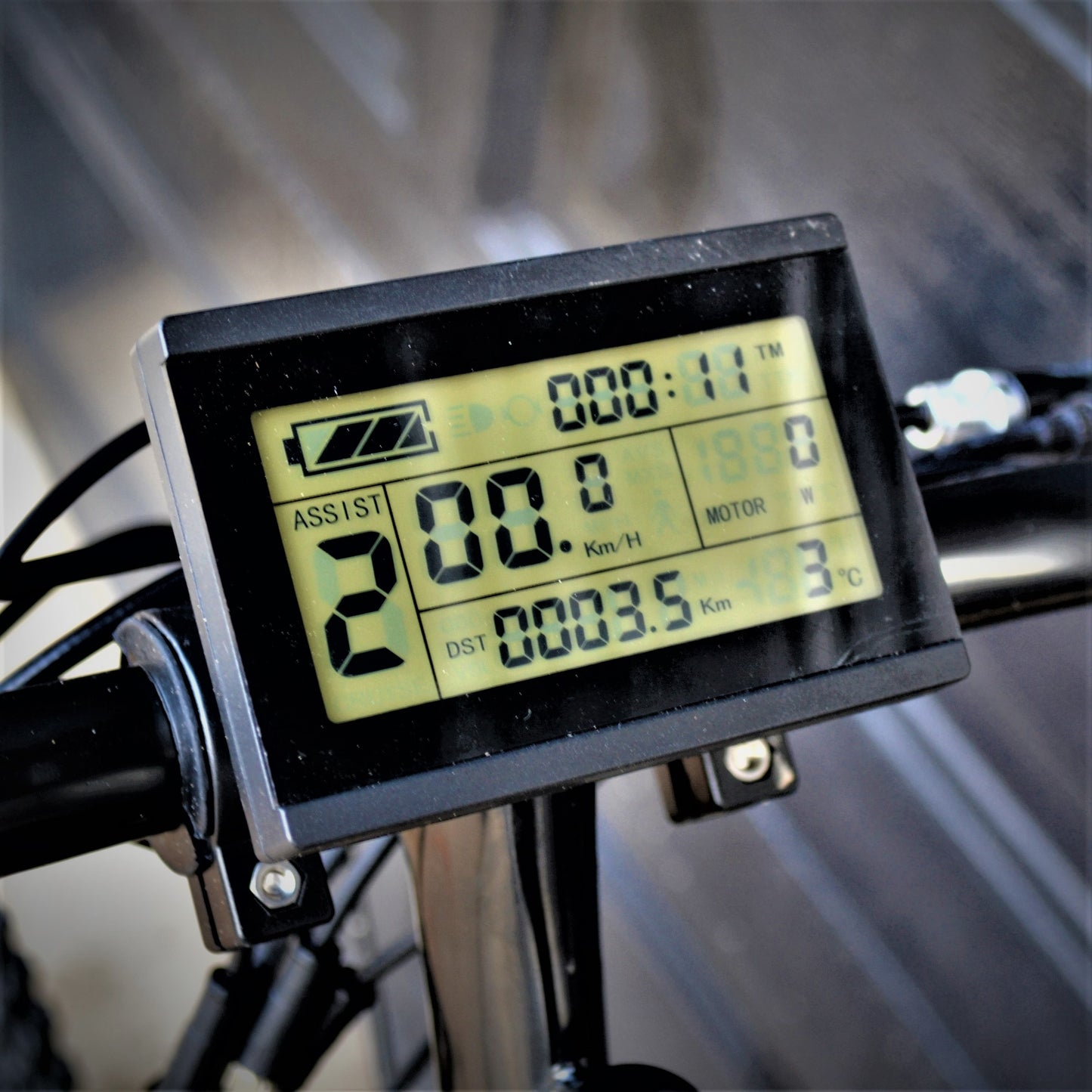

The LCD3 display provides all info of the LCD5 with the addition of
- Watts
- Temperature
- Larger and easier to read

For 24/36/48
24V = P5 = 5
36V = P5 = 12
48V = P5 = 15
52V = P5 = 22


FOR LCD8H 48 / 60V, use settings
48V , P5 = 15
60V , P5 = 35

For LCD8 72V , use
72V = P5 = 8

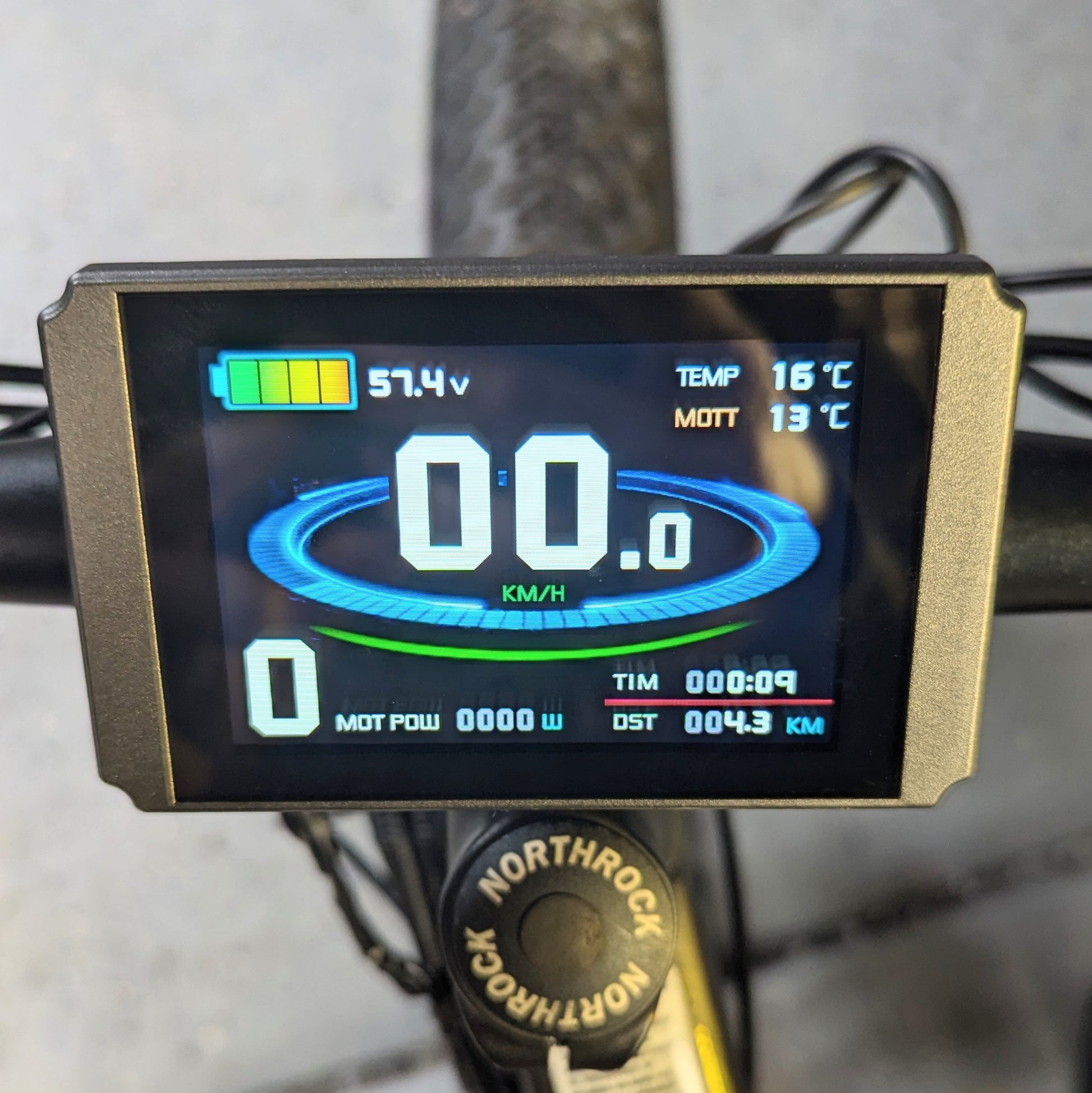

The LCD8 display provides all of the LCD3 features with addition of
- Adjustable walk mode
- Easier programming interface
- More modern look and feel
