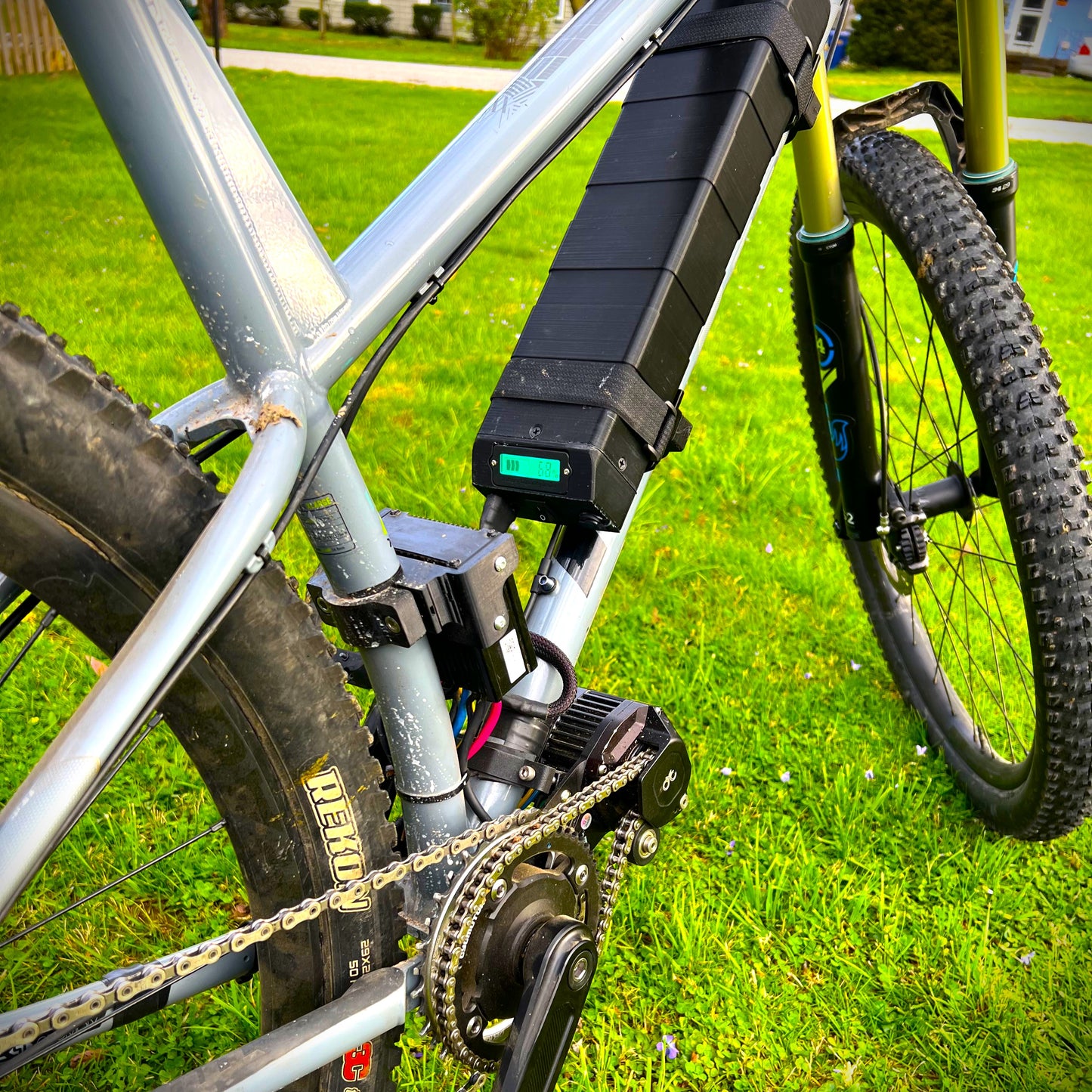

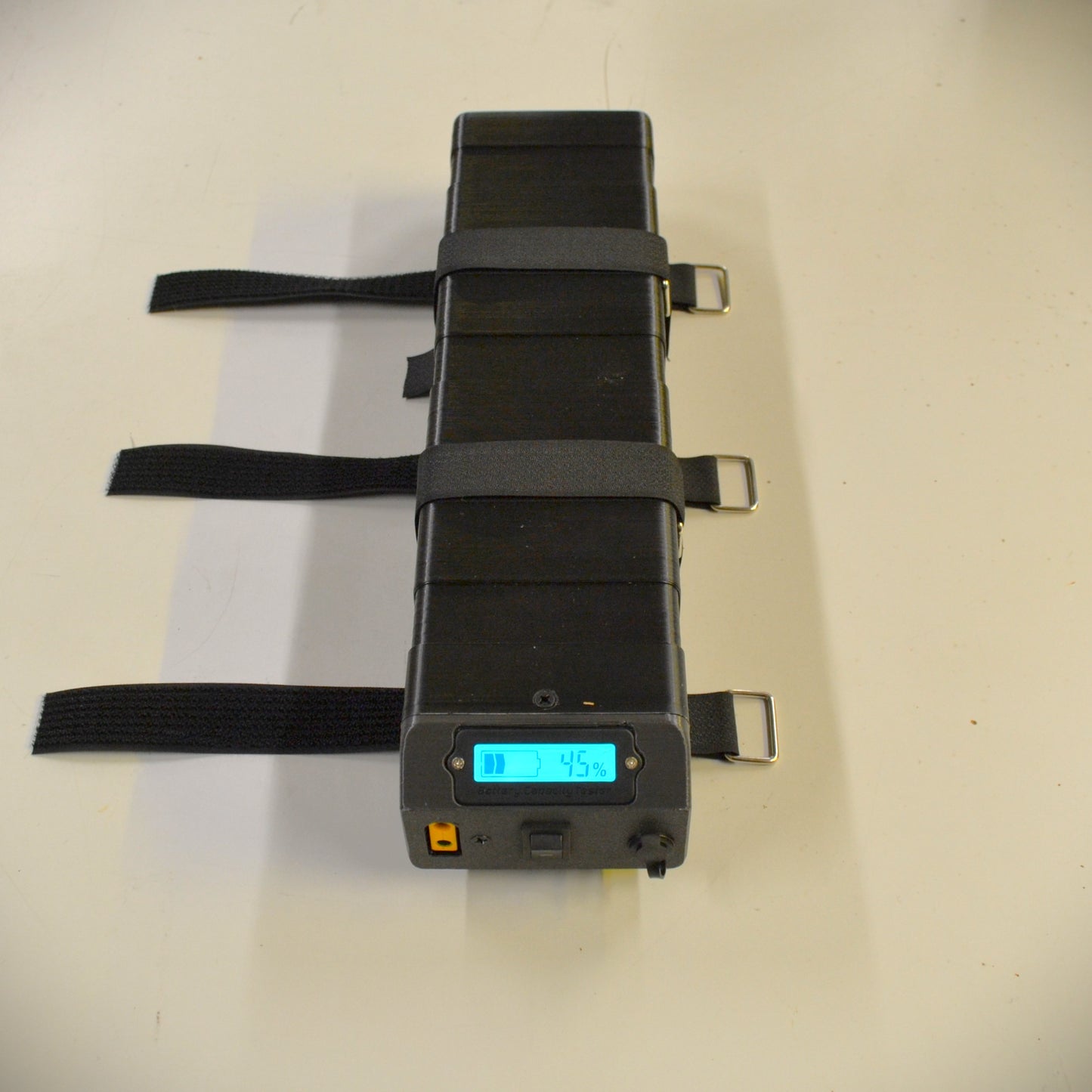

UPDATE : NOW WITH INTEGRATED DISPLAY (displays percentage!)
_______________________________________

We are excited to announce the newest variant of our Slim Pack Batteries!

Want to test Fitment?
Cutout Template HERE

The 2 main requests that we've had about our slim packs are;

- Are they available in 48V and 52V?
- Are they removable?

We've addressed both of these with our latest Slim Pack 2.0 series.

Completely designed / engineered / manufactured in Canada using quality Samsung cells and professional BMS units.

DOWNLOAD THE FILES HERE

Currently available in 10AH (High Range) configuration using Grade A 21700 Samsung 50E Cells, an HD (High Discharge) model with P42A Molicels, as well as HR+ (Samsung 50S) and HD+ (P45B).

These packs are very convenient in that they retain the same slim nature of our previous slim packs, at about 2 inches of height, and with the optional universal mounting only adding less than 1/2''.

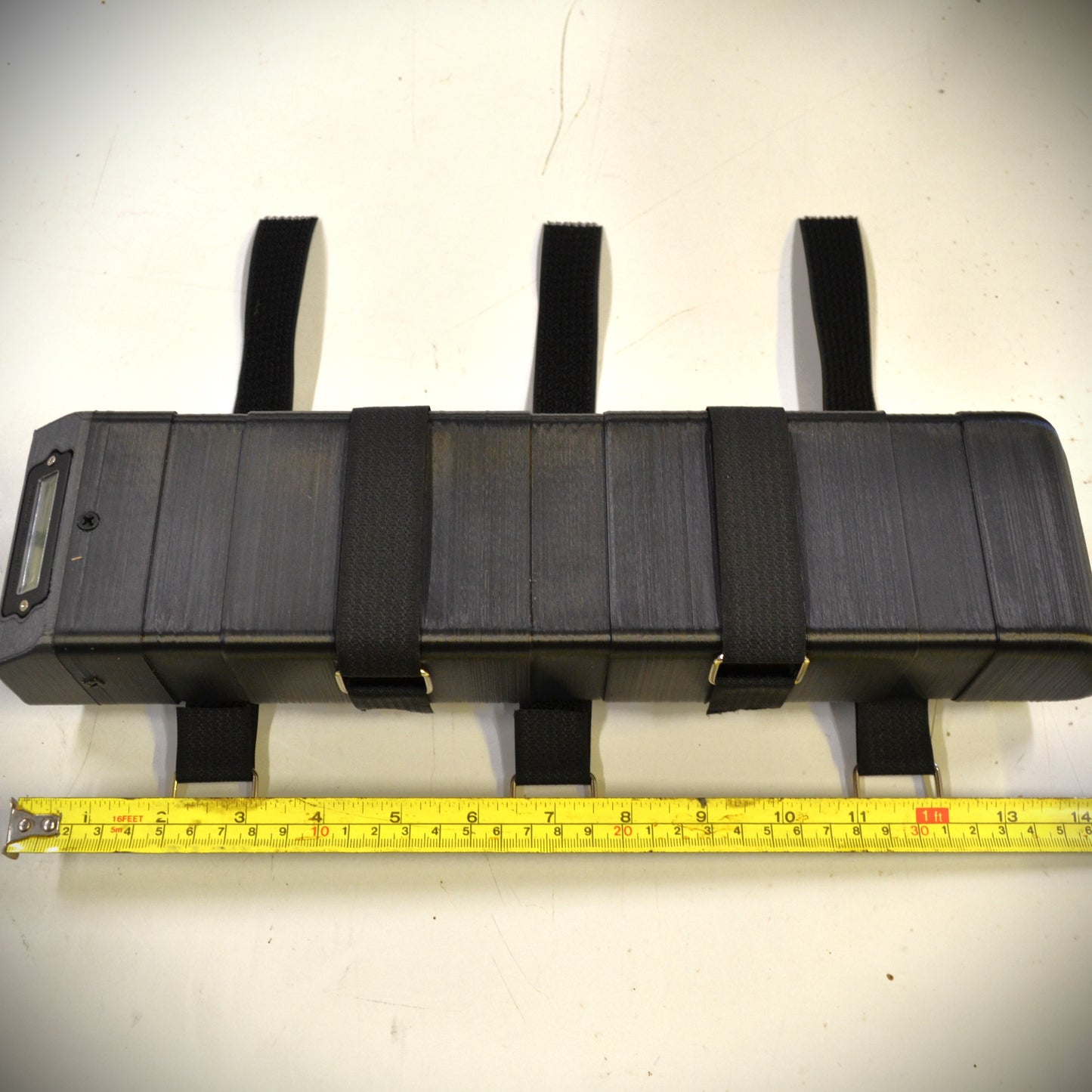

Overall Dimensions:
Length = 14.5''
Width = 3.5''
Height = 2''

The cases are 3D Printed using a High Impact UV Resistant polymer that are so strong that we can jump on the empty case without it budging. Much stronger than any other plastic casing, and without the risk of an aluminum case that can short on itself.

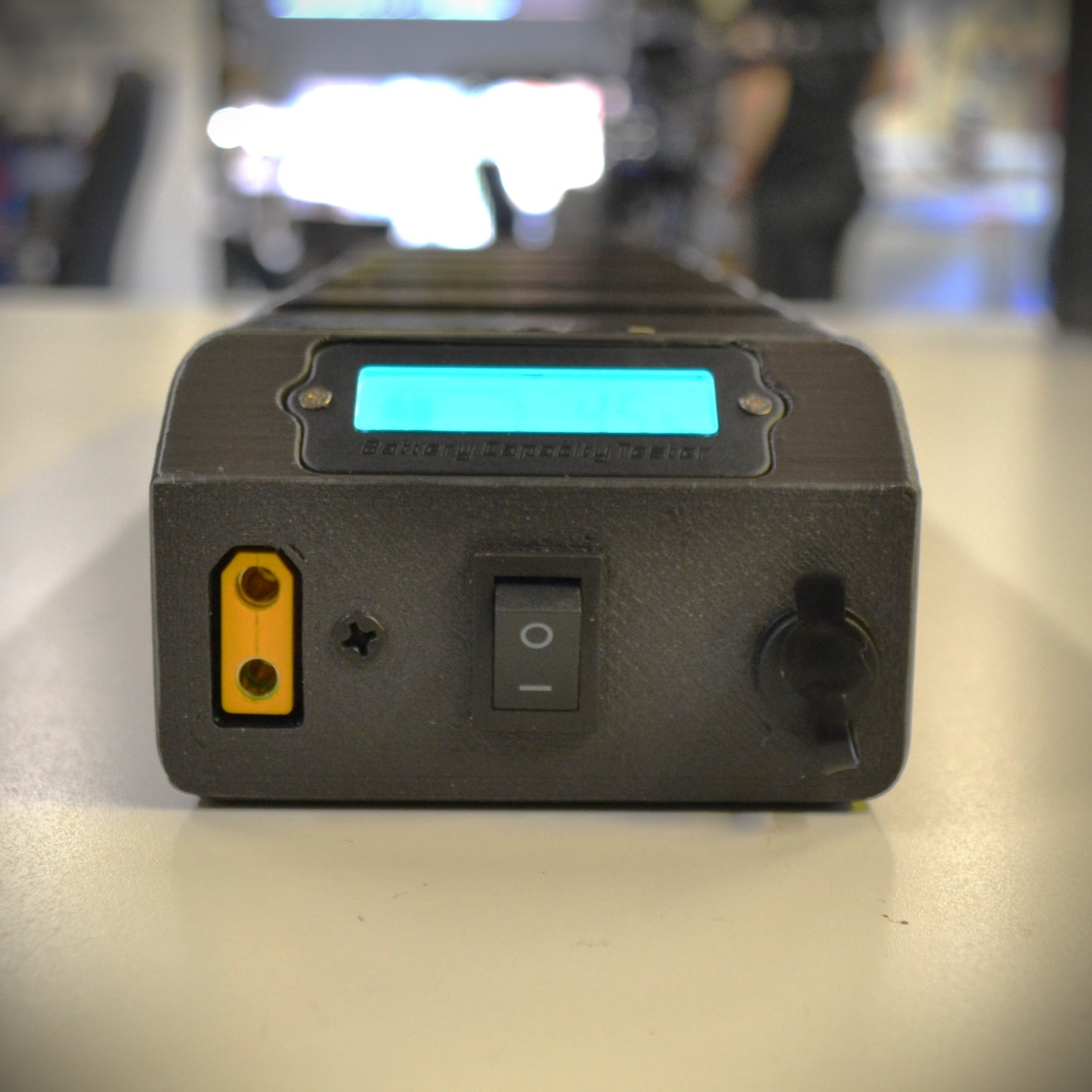

These also have a built in Panel Mount XT90 w Spark Resistor, so an XT90 male can plug directly into the battery (think CYC Photon / Stealth).

We had the BMSs custom made for us, so they offer ON/OFF Switch, thermal protection, cell balancing, current overload, low and high voltage protection and short circuit protection.

Packs include a 3Amp Charger with Fan.

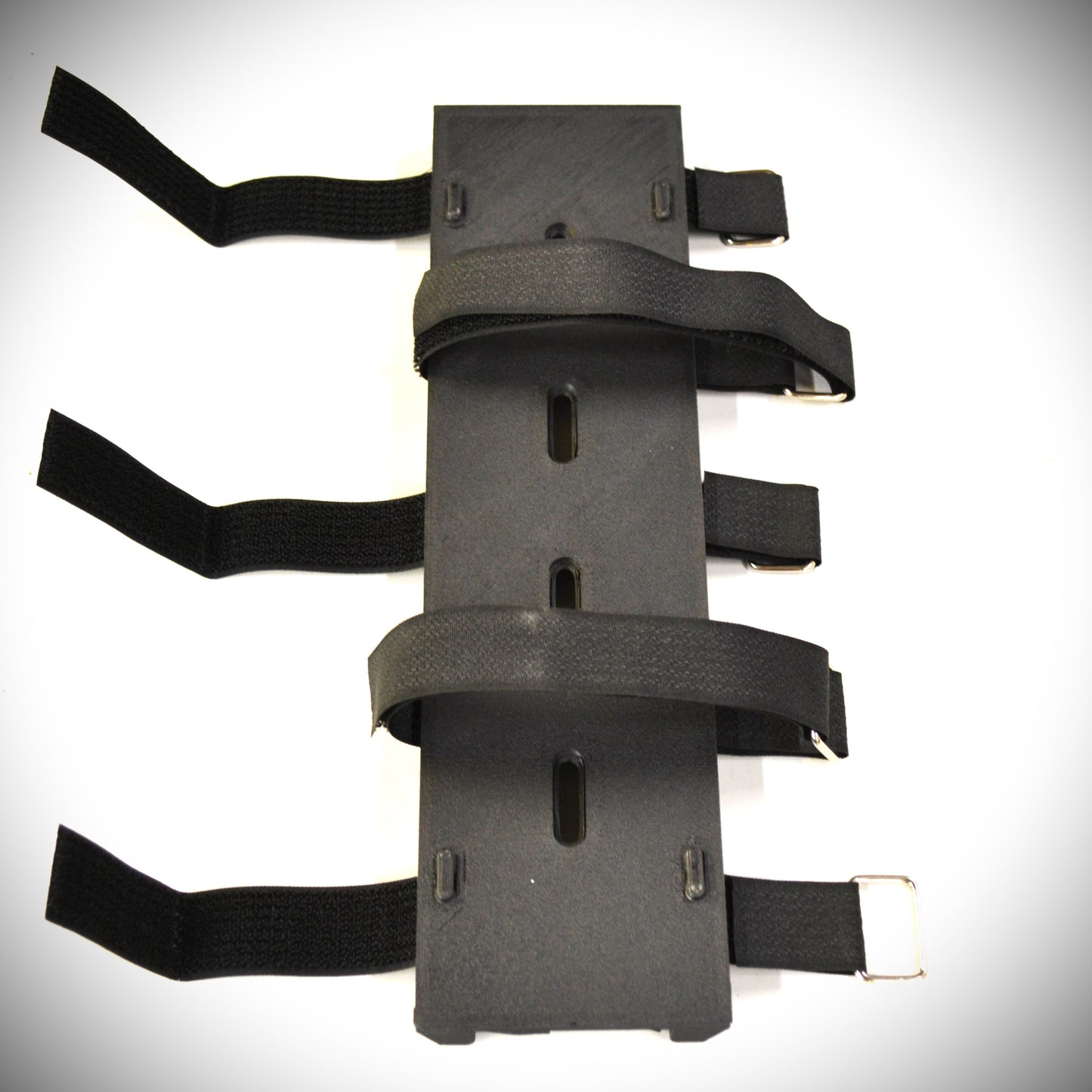

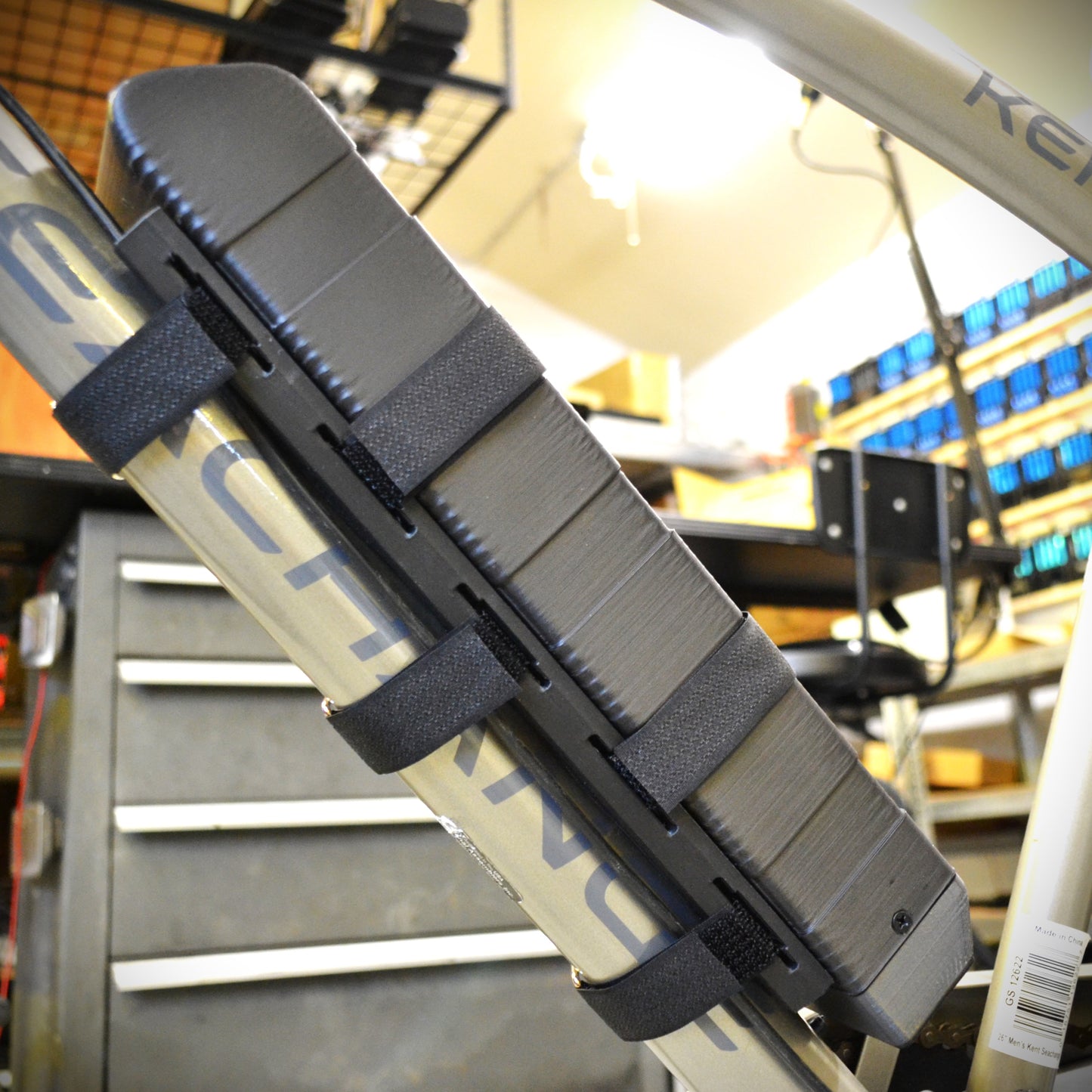

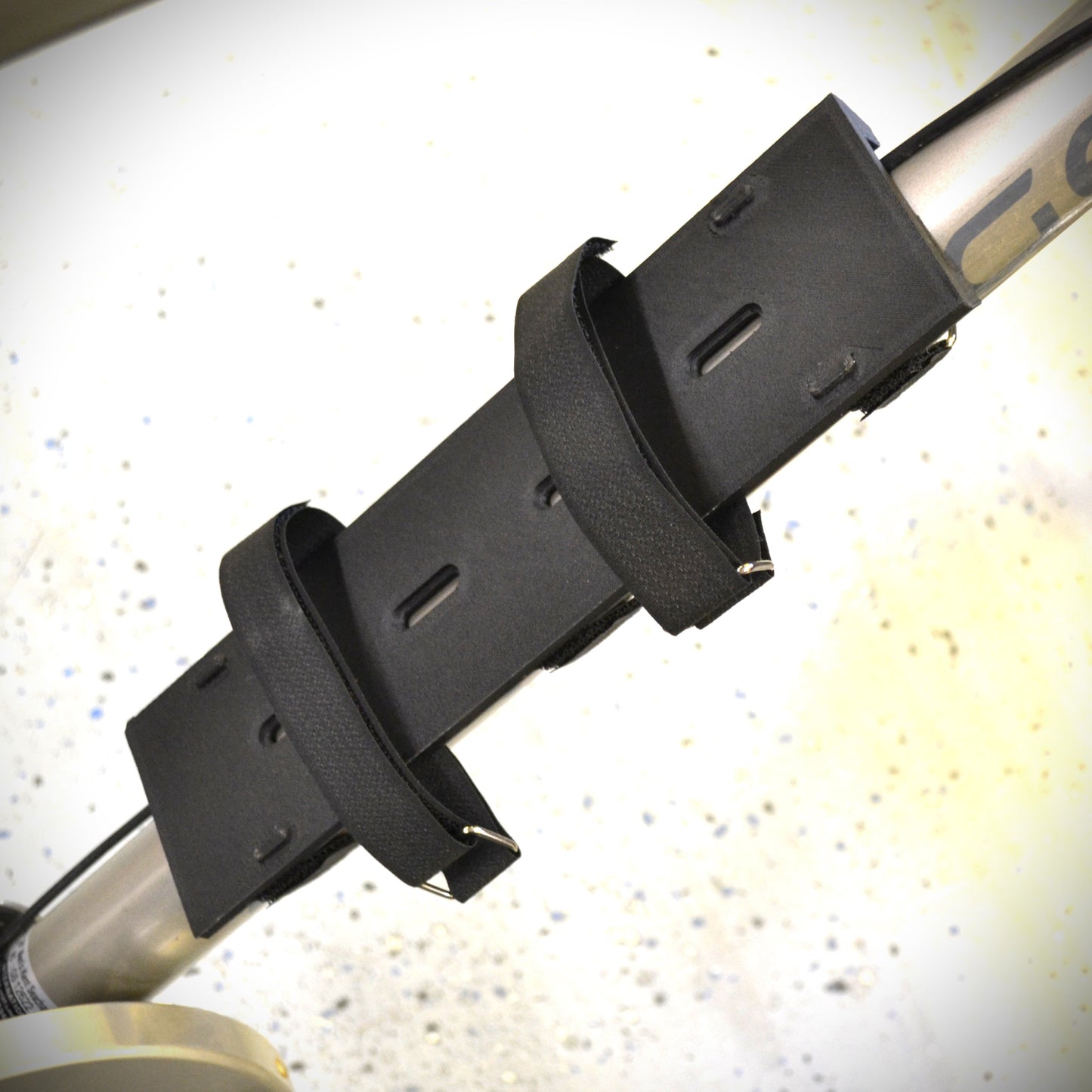

Optional Universal Mount can accommodate Flat Downtubes as well as round downtubes, or even can mount on top tube / seat tube (if big enough frame).

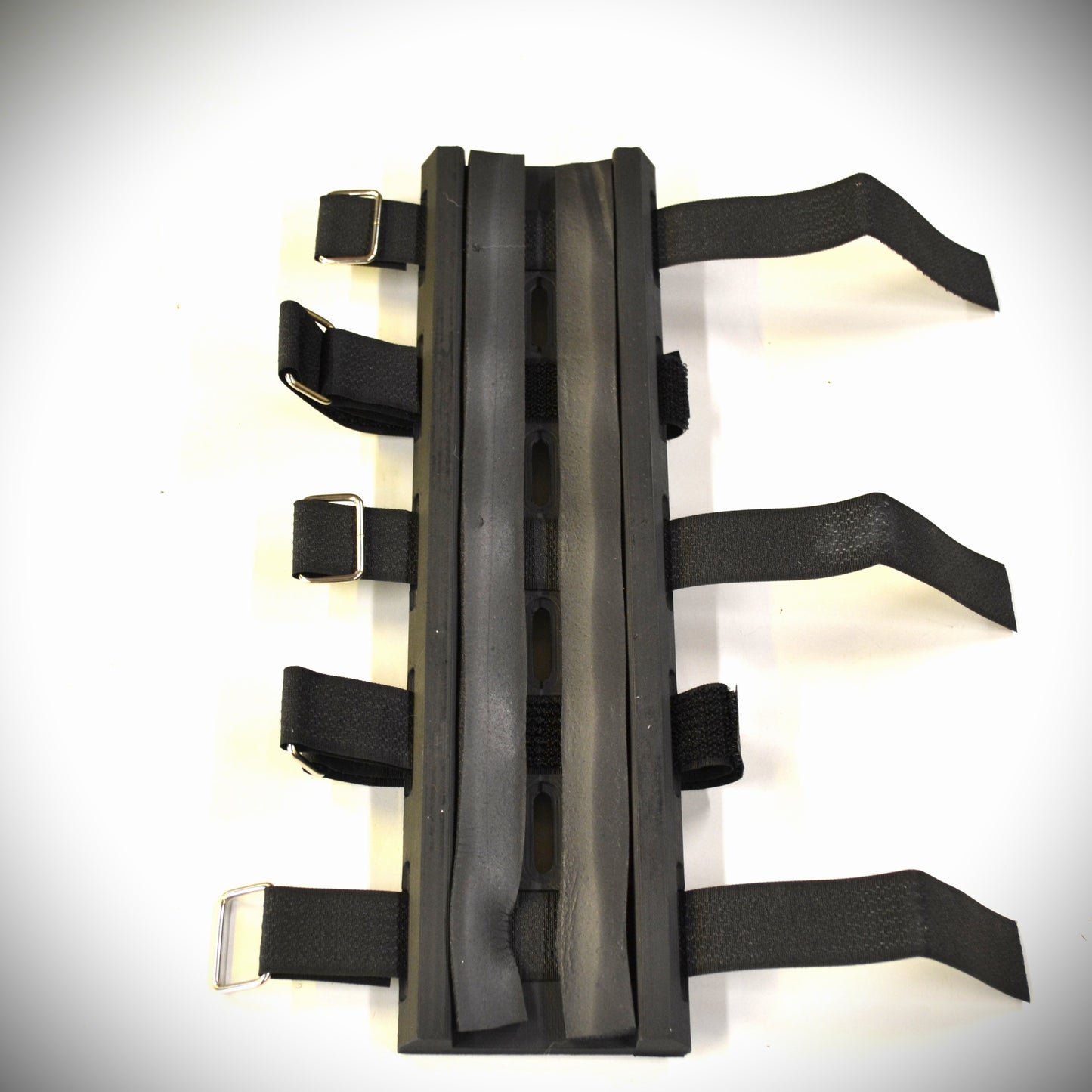

Optional mounts include 5 Velco Straps + 2 Closed Cell Foam inserts to compress to a round tube. Can thread into water bottle mount as well for more support.

Specifications (High Range):
Cells: Samsung 50E 21700
Continuous Current : 20A (1000W)
Peak Current : 50A Cutoff (2500W)
Temp Cutoff : 75C
Max Charge Current : 5A

Specifications (High Discharge):
Cells: Molicel P42A
Continuous Current : 30A (1500W)
Peak Current : 80A Cutoff (4000W)
Temp Cutoff : 75C
Max Charge Current : 8A

Specifications (High Range Plus):
Cells: Samsung 50S 21700
Continuous Current : 30A (1500W)
Peak Current : 60A Cutoff (2500W)
Temp Cutoff : 75C
Max Charge Current : 5A

Specifications (High Discharge Plus):
Cells: Molicel P45B (Insanely Powerful)
Continuous Current : BMS 30A (1500W)
Peak Current : BMS 80A Cutoff (4000W)
Temp Cutoff : 75C
Max Charge Current : 8A
