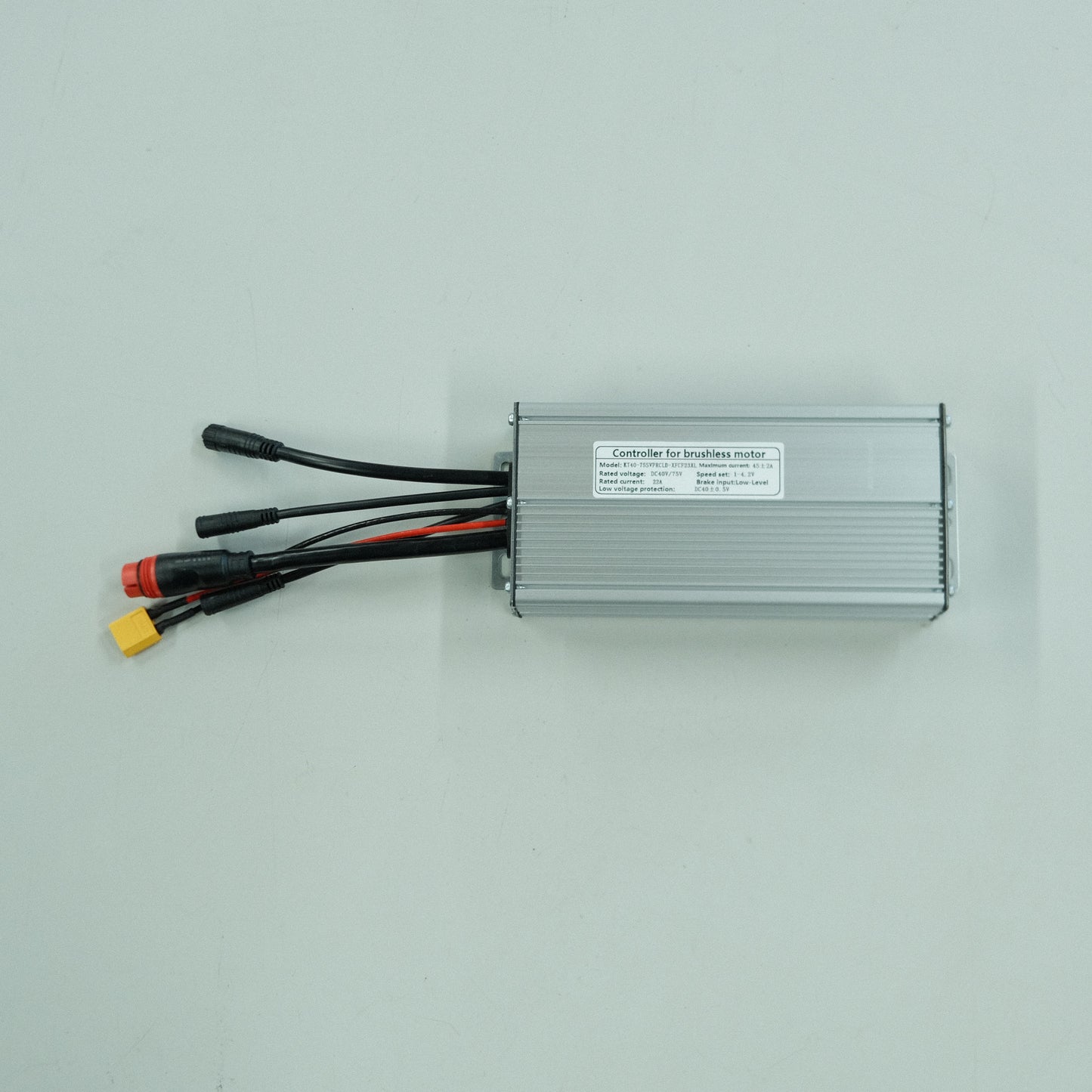

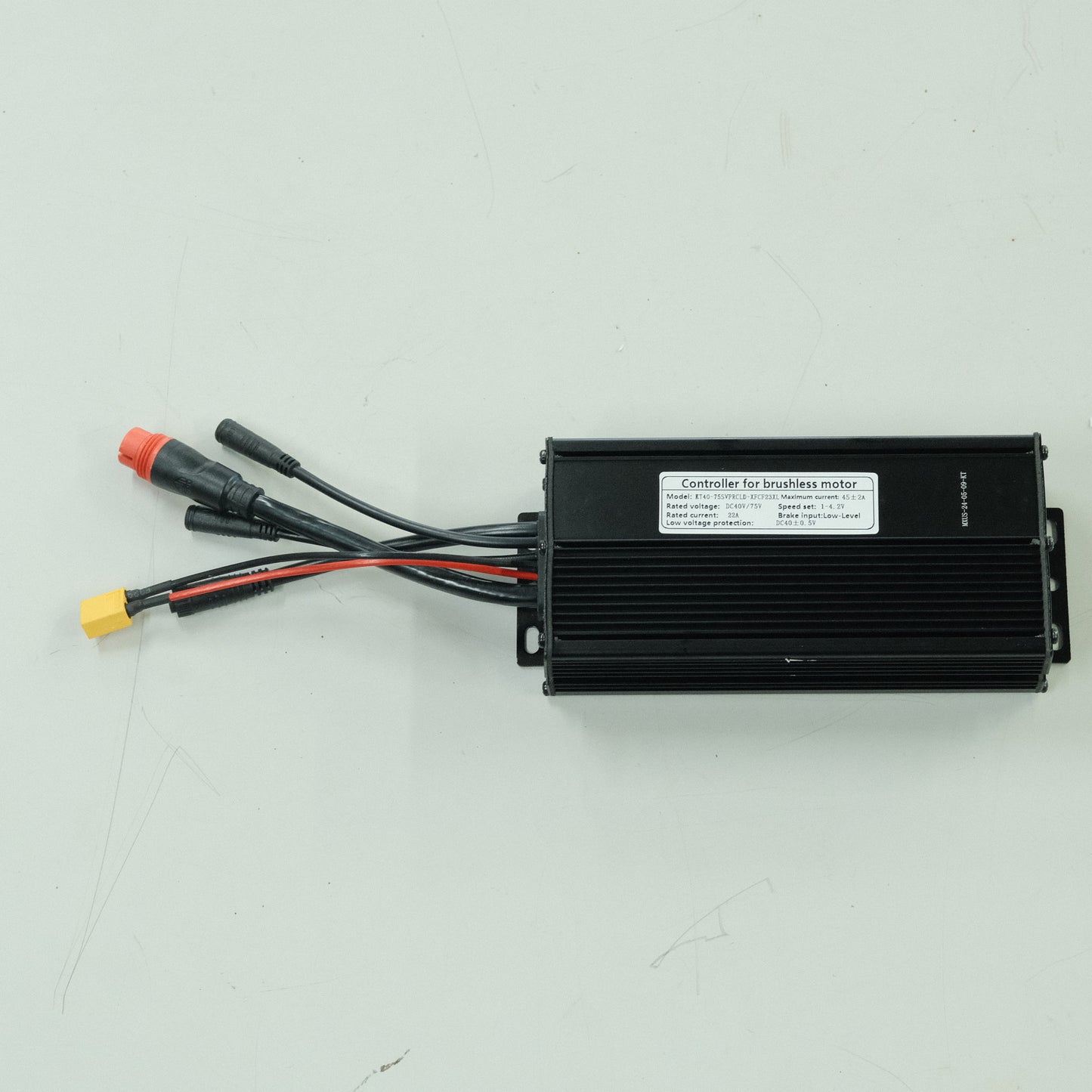

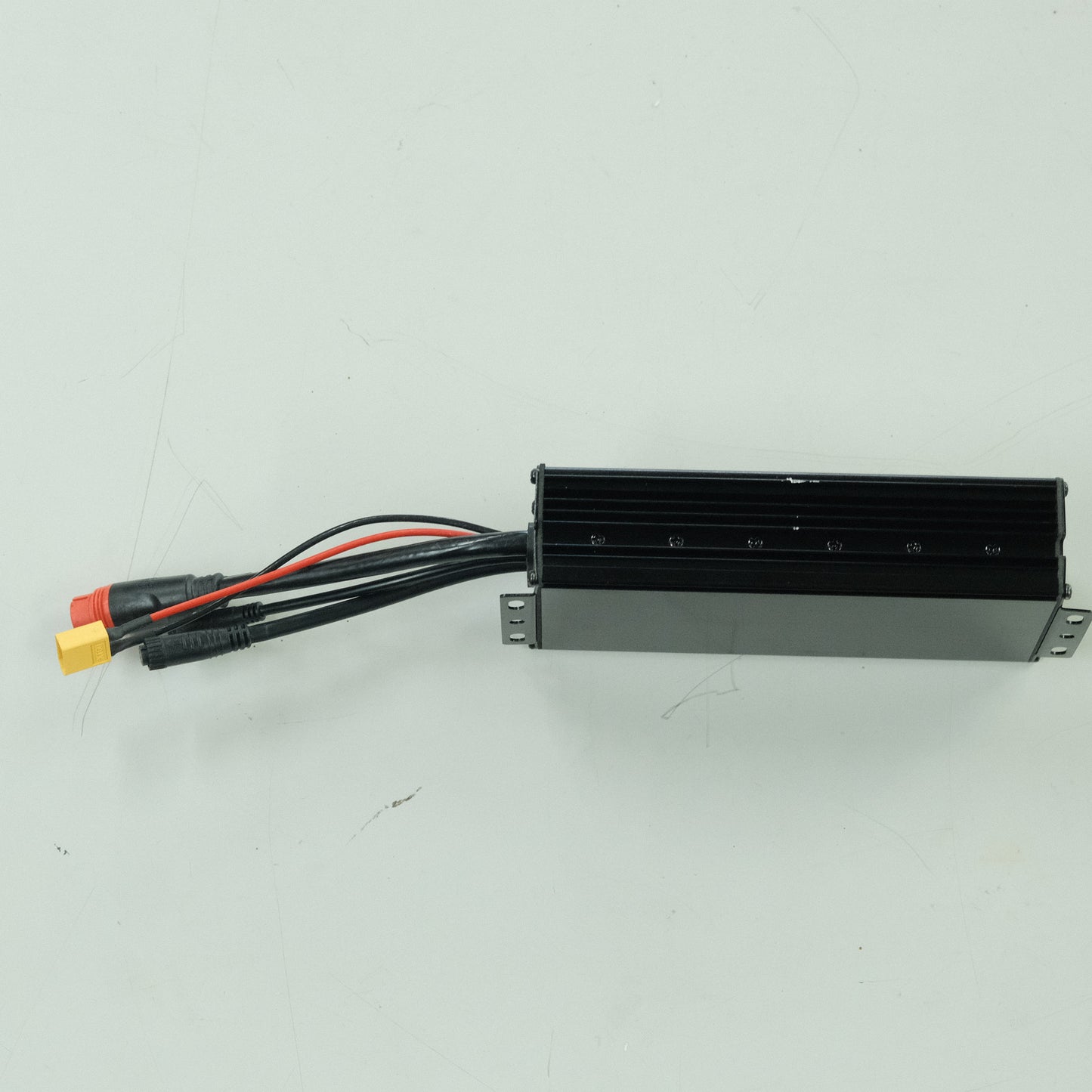

NEW 2024 - KT 45A 40-75 Sine Wave WP Brushless Motor Controller (48-60V compatible)

NEW 2024 - KT 45A 40-75 Sine Wave WP Brushless Motor Controller (48-60V compatible)

Regular price $149.99 CAD
Regular price Sale price $149.99 CAD
Sale Sold out
Color
View full details

NEW for 2024!


We have requested the best from the KT (Kunteng) Factory! These new controllers are compact, super smooth, and feature rich!

Please Note : It seems that BAFANG G063 1000W may not be compatible with this controller.

Distinct Features Include

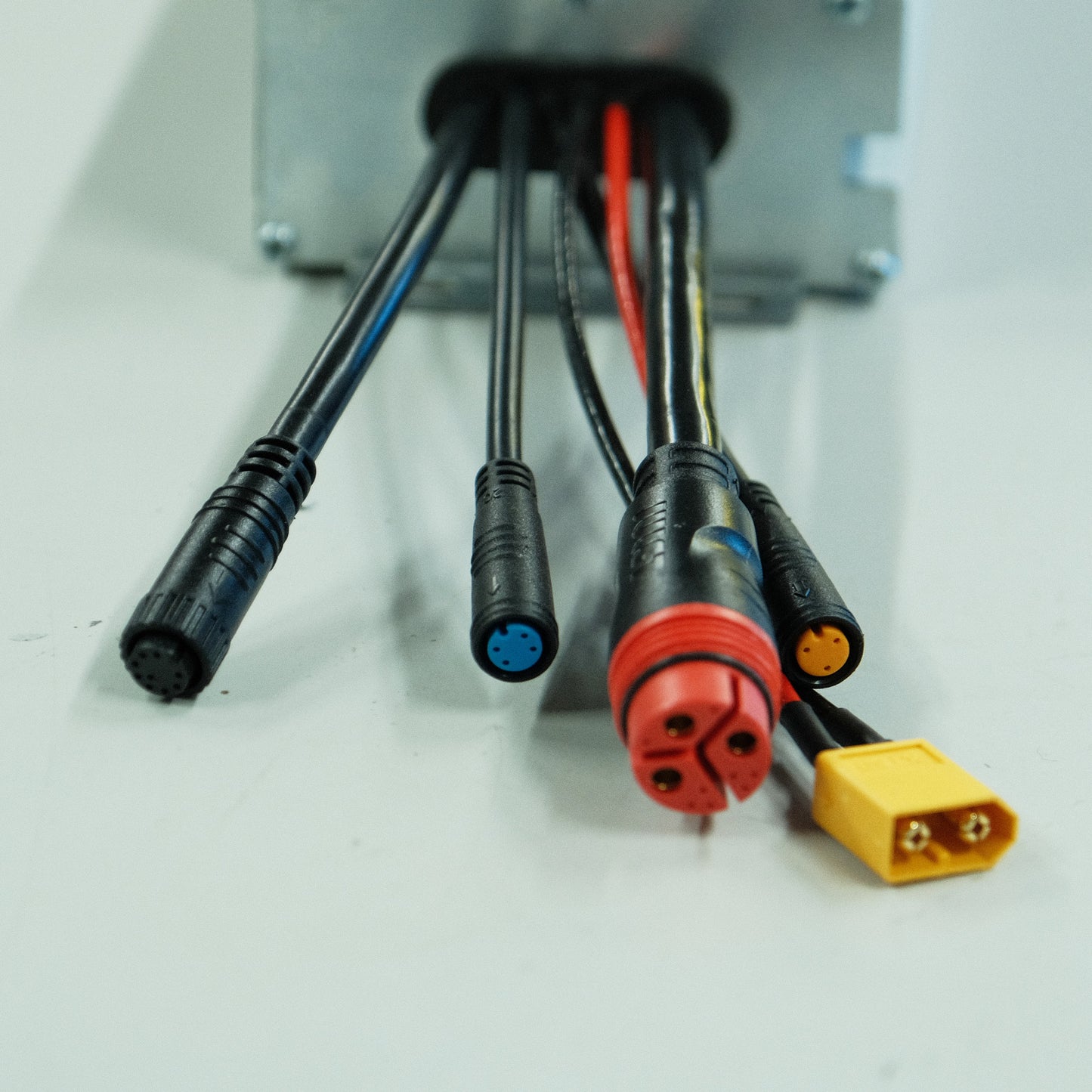

- All Waterproof Connections (Uses 1T5 Harness Cable for Handlebar Connections)
- Front Headlight Compatible

- Rear BRAKE Light + Running Light Compatible

IMPORTANT! BRAKE LIGHT ONLY FUNCTIONS WITH BRAKE LEVERS (does not work with hydraulic / inline cable brake sensors). It will short the brake sensor. If you buy a brake light from us, we will modify the brake light for your brake sensor type.


- Sine Wave motor control (not square wave) for whisper quiet operation, and smooth motor control
- Temperature Sensor Enabled (motors with temp sensors)
- Compatible with all KT Displays (LCD3/LCD5/LCD8)

Other standard features

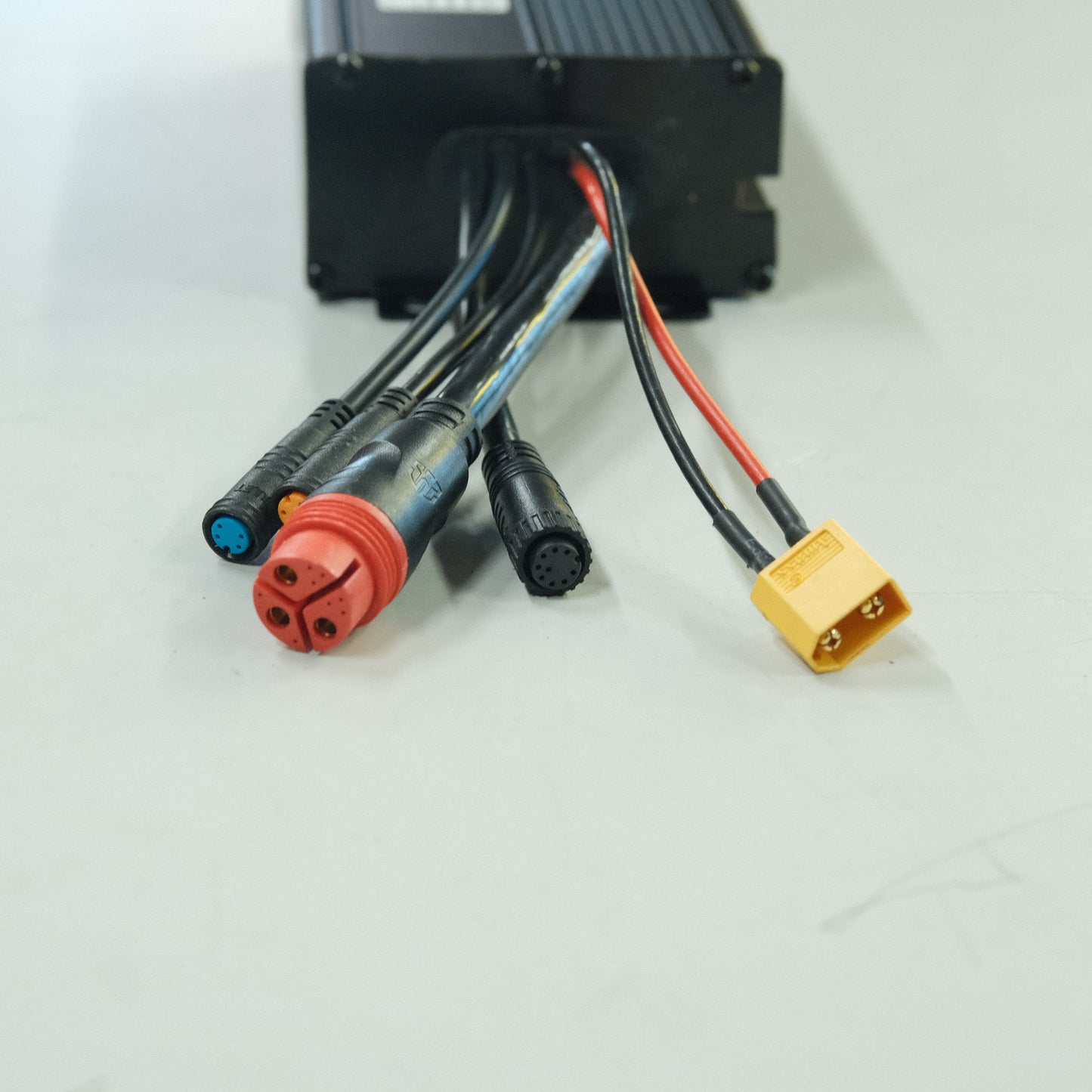

- High Current XT60 Male Battery Connection
- Refined Torque-imitating Pedal Assist Functionality

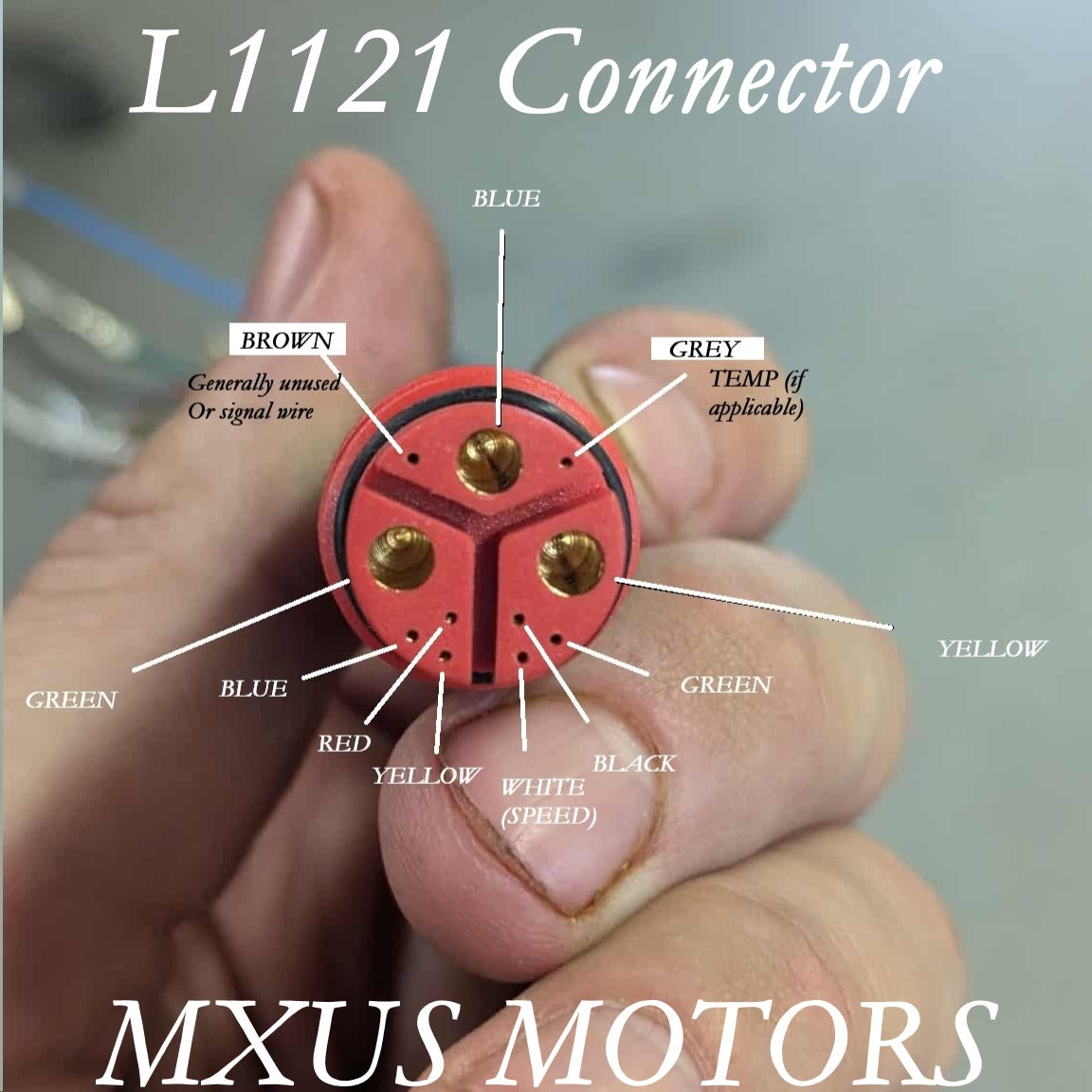

- Extra High Current (L1121) Motor Connection, Screw on Type

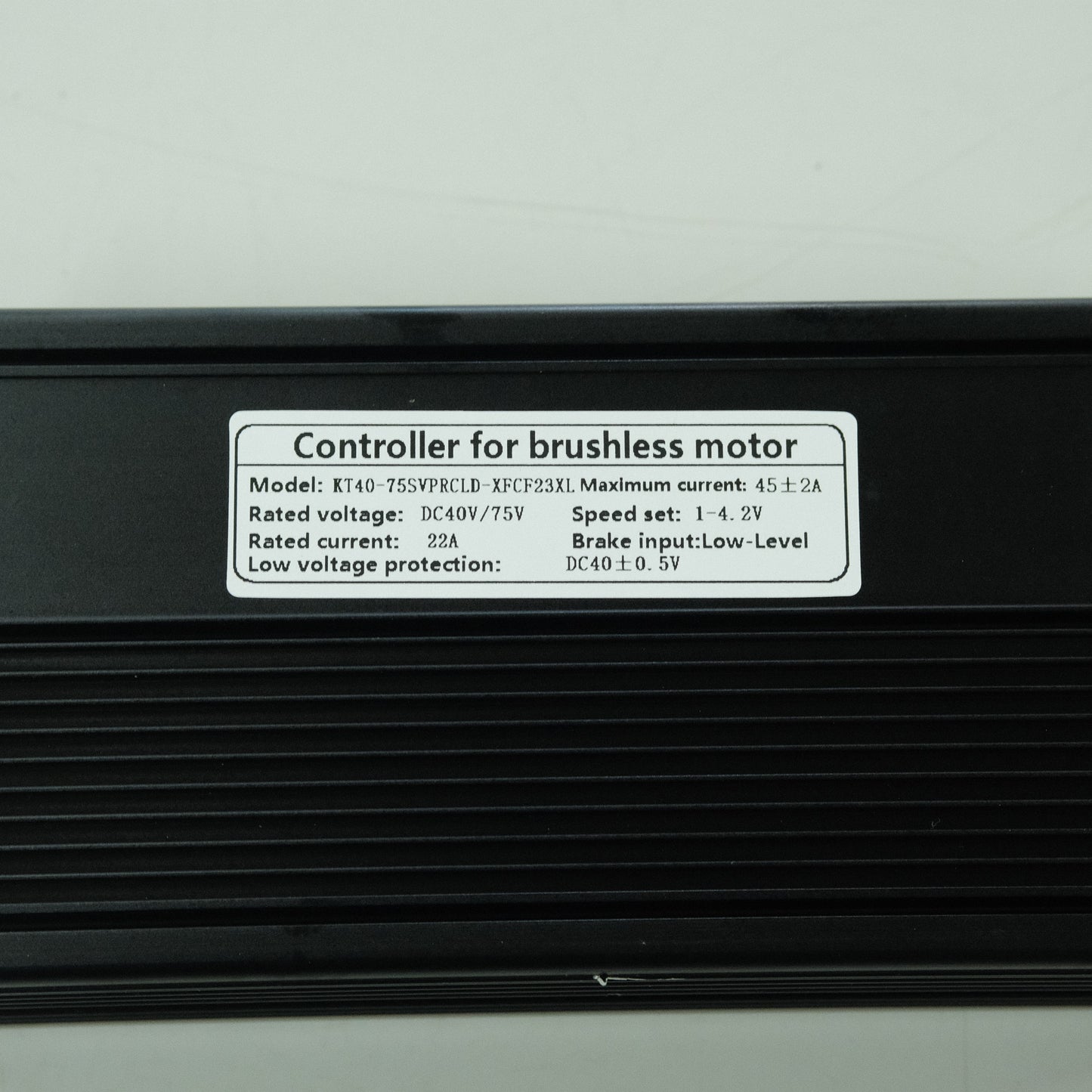

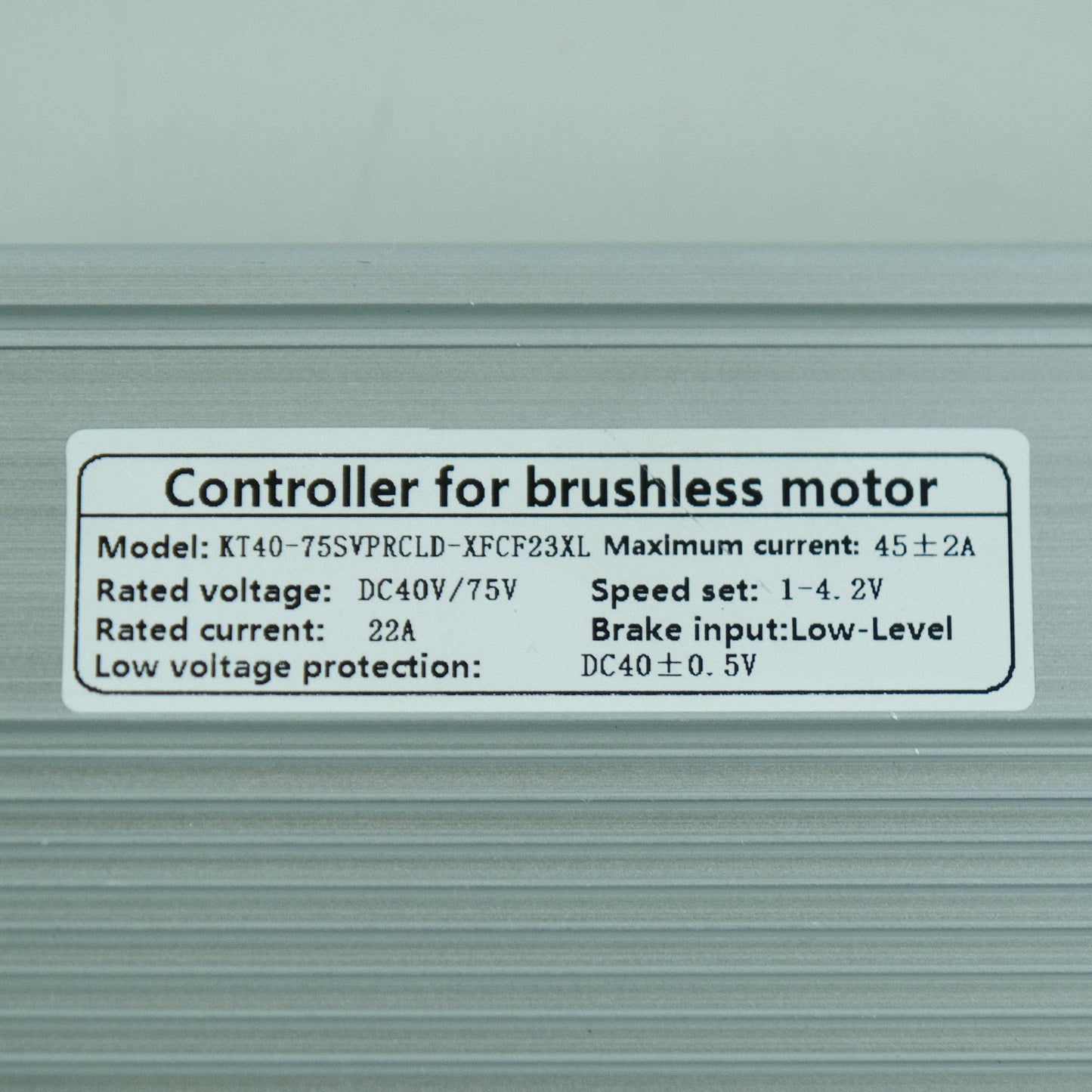

This particular controller has the following specs:
Rated Voltage - 40-75V (for 48V-60V)
Rated Current - 22A Constant, 45A Peak
This would be considered a "1000 Watt / 1500W Controller"
