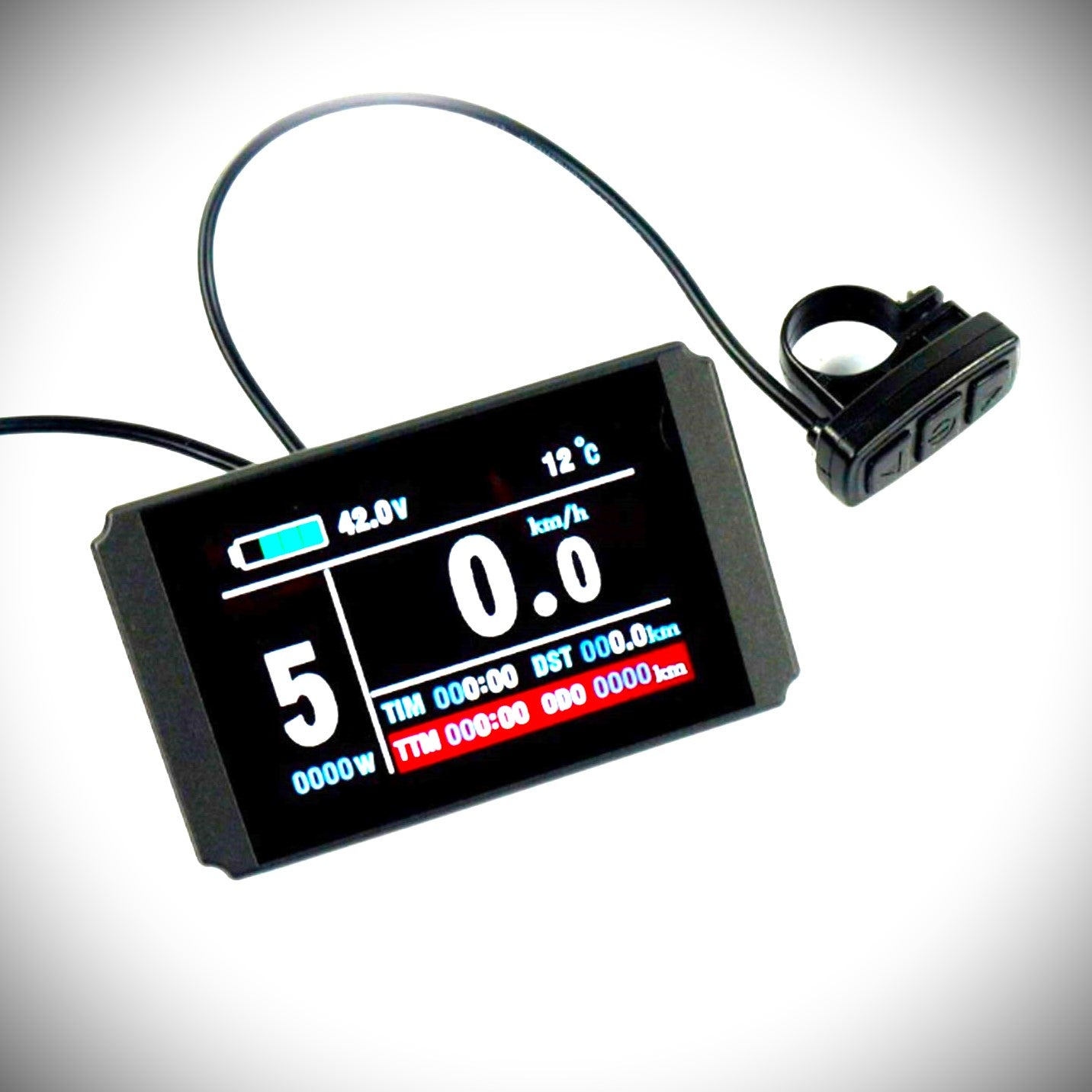

KT LCD8H Color Display, available in 24/36/48V as well as 72V.

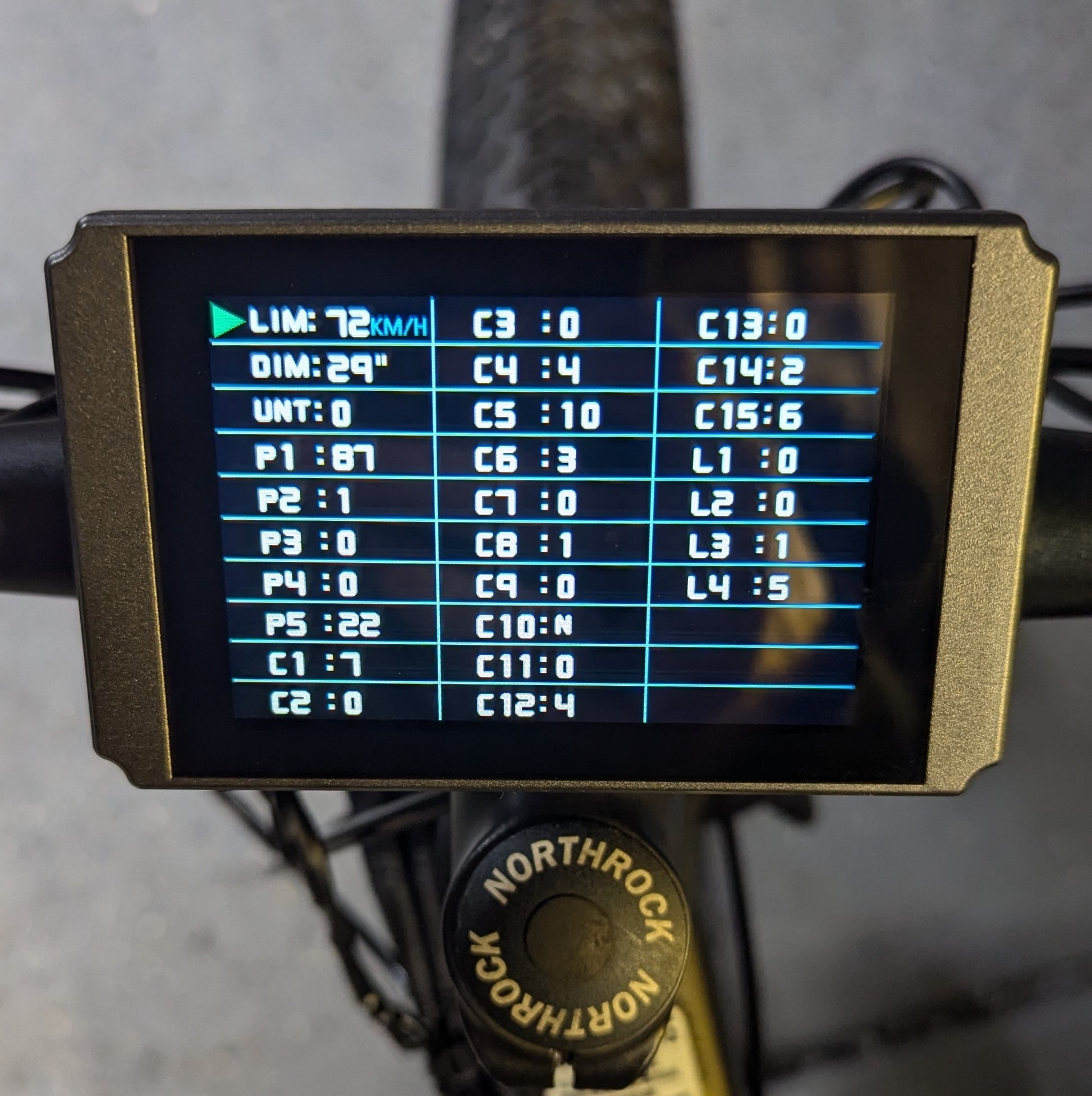

For 24/36/48
24V = P5 = 5
36V = P5 = 12
48V = P5 = 15
52V = P5 = 22


FOR LCD8H 48 / 60V, use settings
48V , P5 = 15
60V , P5 = 35

For LCD8 72V , use
72V = P5 = 8

Very nice display, very easy to see in the sunlight as well with the high contrasting white on black background. Easy to program as well (if needed).

Full description below.

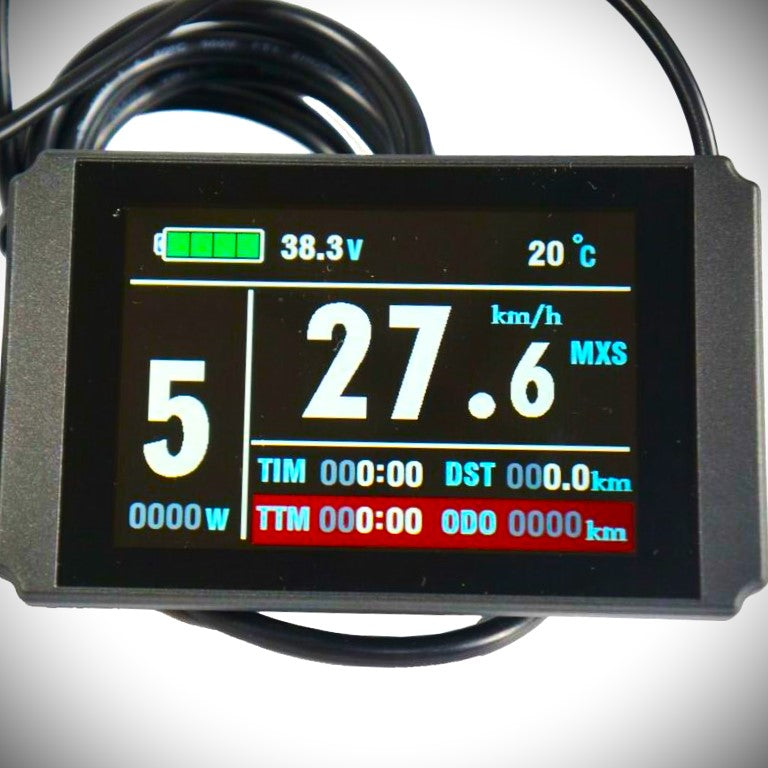

The KT LCD8 Color Display is a user-friendly and feature-rich electronic display panel commonly used in electric bicycles (e-bikes) and electric scooters.

1. Vivid Color Screen: The KT LCD8 features a vibrant color screen that provides clear and easy-to-read information, even in various lighting conditions. The color display enhances the user experience by providing a visually appealing interface.

2. Intuitive Interface: The user interface of the KT LCD8 is designed to be intuitive and user-friendly. It typically includes a set of buttons or a touchscreen interface that allows riders to navigate through various menus and settings with ease.

3. Comprehensive Information: The display provides riders with a wealth of information about their e-bike or electric scooter, including but not limited to:

   • Current Speed: Real-time speed of the vehicle.

   • Battery Level: Remaining battery capacity or voltage.

   • Trip Distance: Distance covered during a single ride.

   • Total Distance: Cumulative distance traveled over the lifetime of the e-bike.

   • Assist Level: The level of pedal assistance or power output.

   • Time: Current time display.

   • Error Codes: Alerts for system errors or issues.

   • Odometer: Displays the total mileage on the e-bike.

4. Customizable Settings: The KT LCD8 often allows users to customize various settings to suit their preferences and riding conditions. This can include adjusting power assist levels, setting speed limits, configuring backlight brightness, and more.

5. Real-time Data: In addition to basic information, the display may also provide real-time data such as motor power output, pedal cadence, and motor temperature, allowing riders to monitor the performance of their e-bike.

6. Backlighting: The display typically features adjustable backlighting to improve visibility during nighttime or low-light riding conditions.

7. Compatibility: The KT LCD8 is designed to be compatible with a wide range of e-bike and electric scooter systems, making it a versatile choice for manufacturers and riders.

8. Durability: These displays are built to withstand the rigors of outdoor use, with weather-resistant construction to protect against rain and dust.

9. Wiring Integration: The KT LCD8 seamlessly integrates with the e-bike's wiring system for a clean and professional appearance.

10. User Manuals and Support: KT typically provides user manuals and customer support to help riders and technicians install and troubleshoot the display.

Overall, the KT LCD8 Color Display is a versatile and user-friendly component that enhances the riding experience on electric bicycles and electric scooters by providing essential information and customization options in a clear and visually appealing manner.
