Classic Hub Sinks, V2 Version

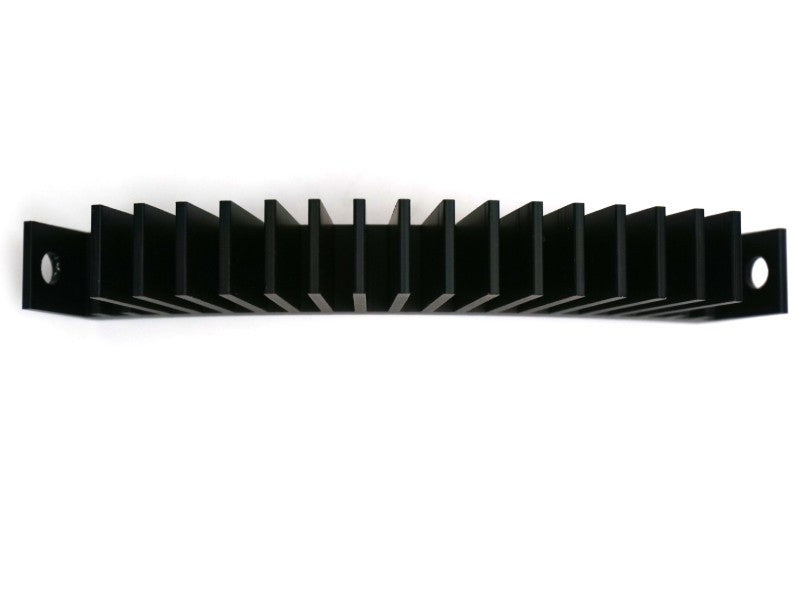

These aluminum fins are assembled together on a 205mm diameter Direct Drive Hub Motor  (such as MXUS XF40 1KW, MXUS 3K Turbo, QS205).

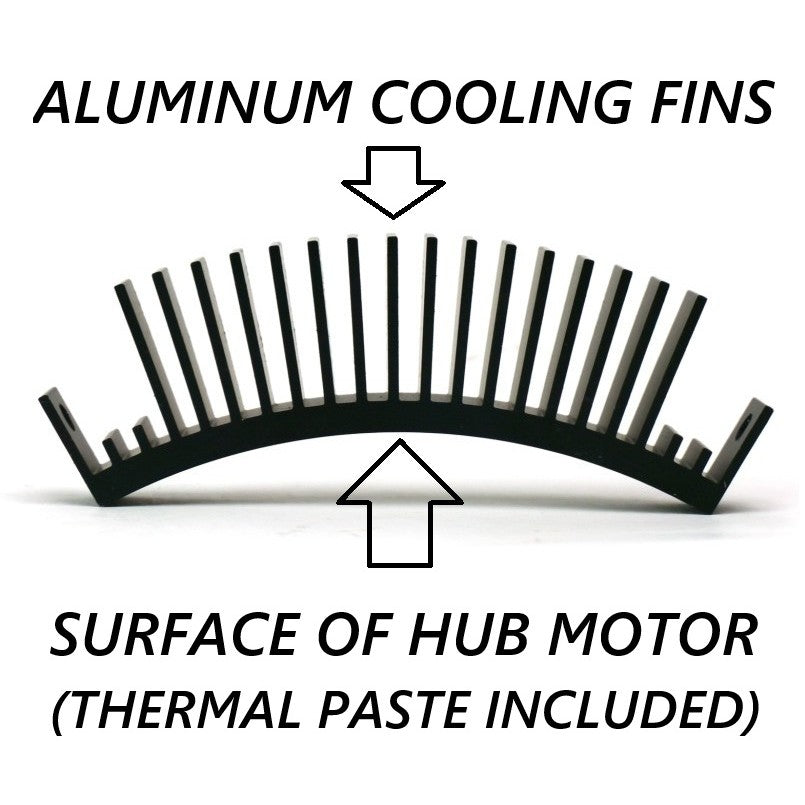

Thermal Paste bonds to the outer shell, and the cooling fins provide significantly more surface area for heat to flow out of the motor.

ONLY EFFECTIVE with a cooling fluid inside the motor (STATORADE or some other type of fluid).

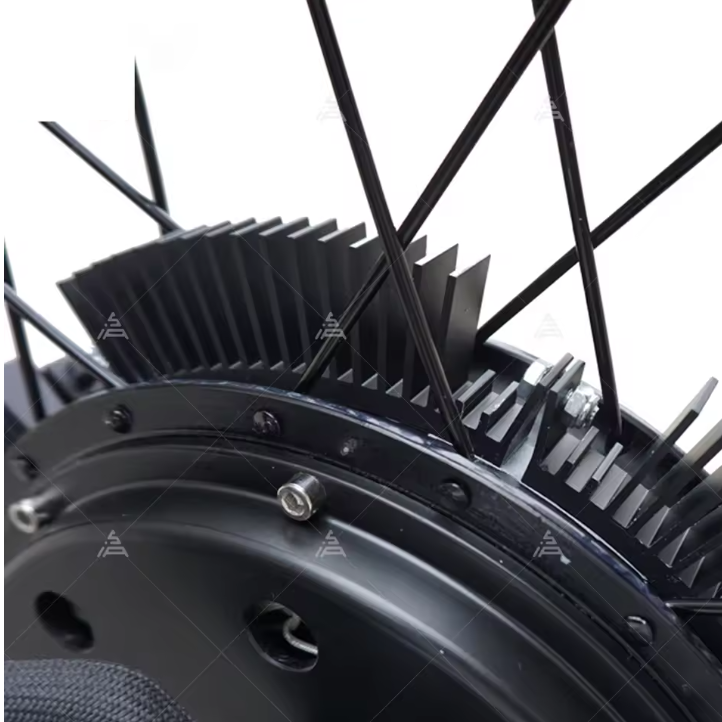

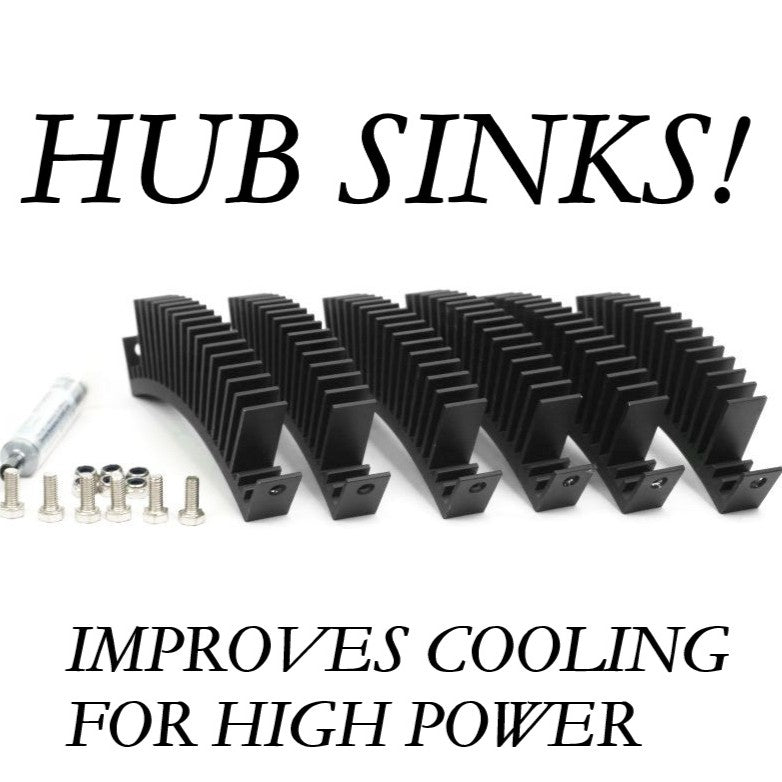

V2 HubSink cooling fins for greatly increasing the cooling capabilities of 218-224mm shell diameter (9C, Crystalyte 'H', MXUS, Leaf etc.) 205mm stator direct drive hub motors that contain Statorade. The 6-piece solution bolts onto the ring of existing direct drive hub motors and provides much more area moving heat from the magnet ring to ambient air, increasing the cooling effect by up to 20% over just Statorade alone.
