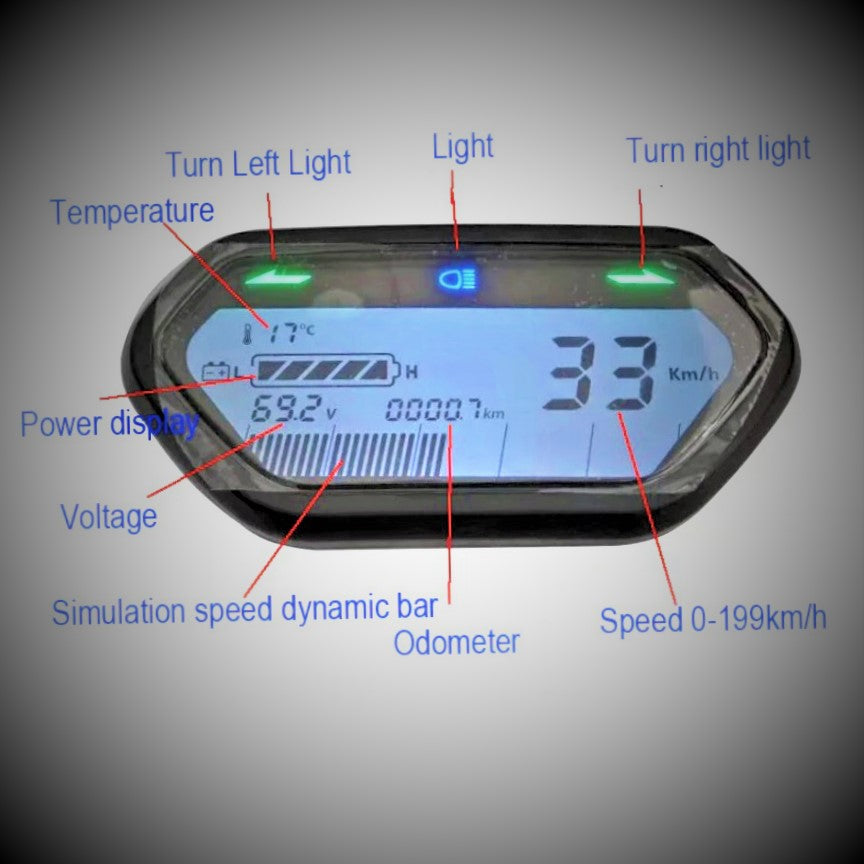

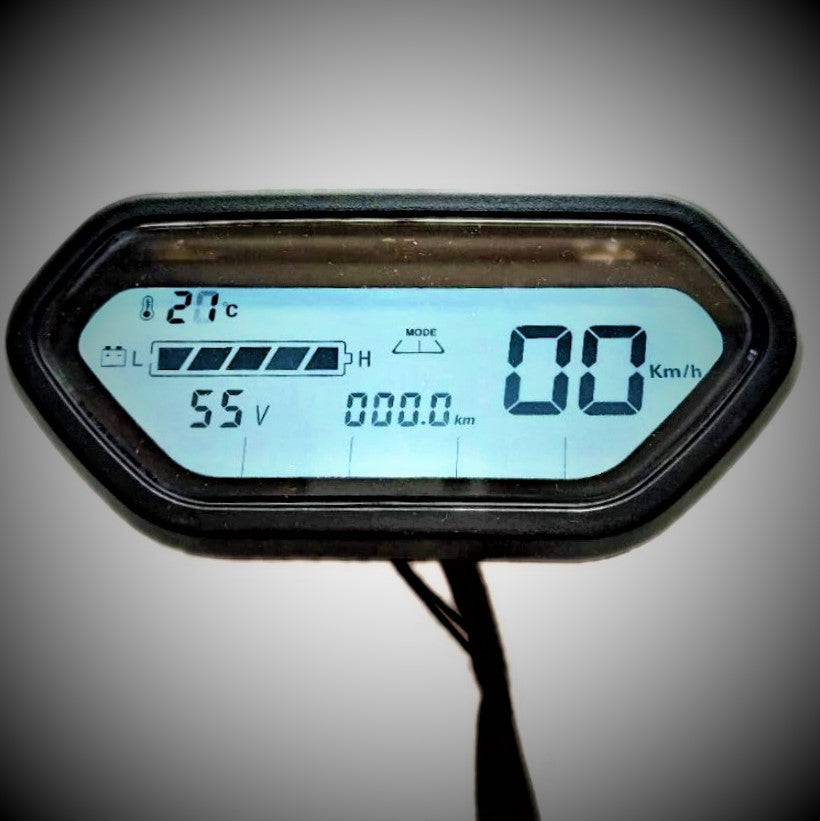

Universal Display

For 48V or 60V applications (72V version available soon)

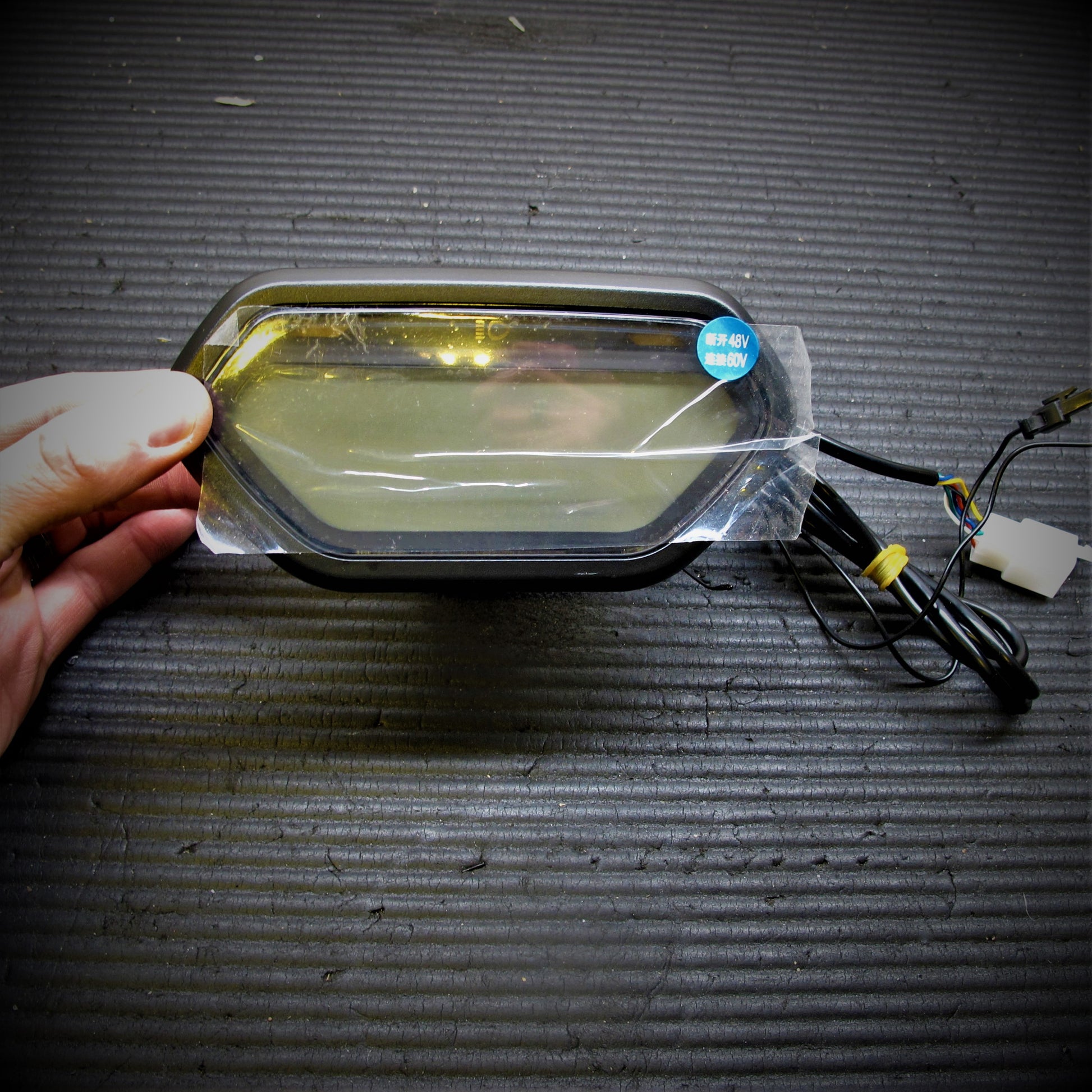

When black wire is plugged in, indicator will read for 48V, disconnected 60V

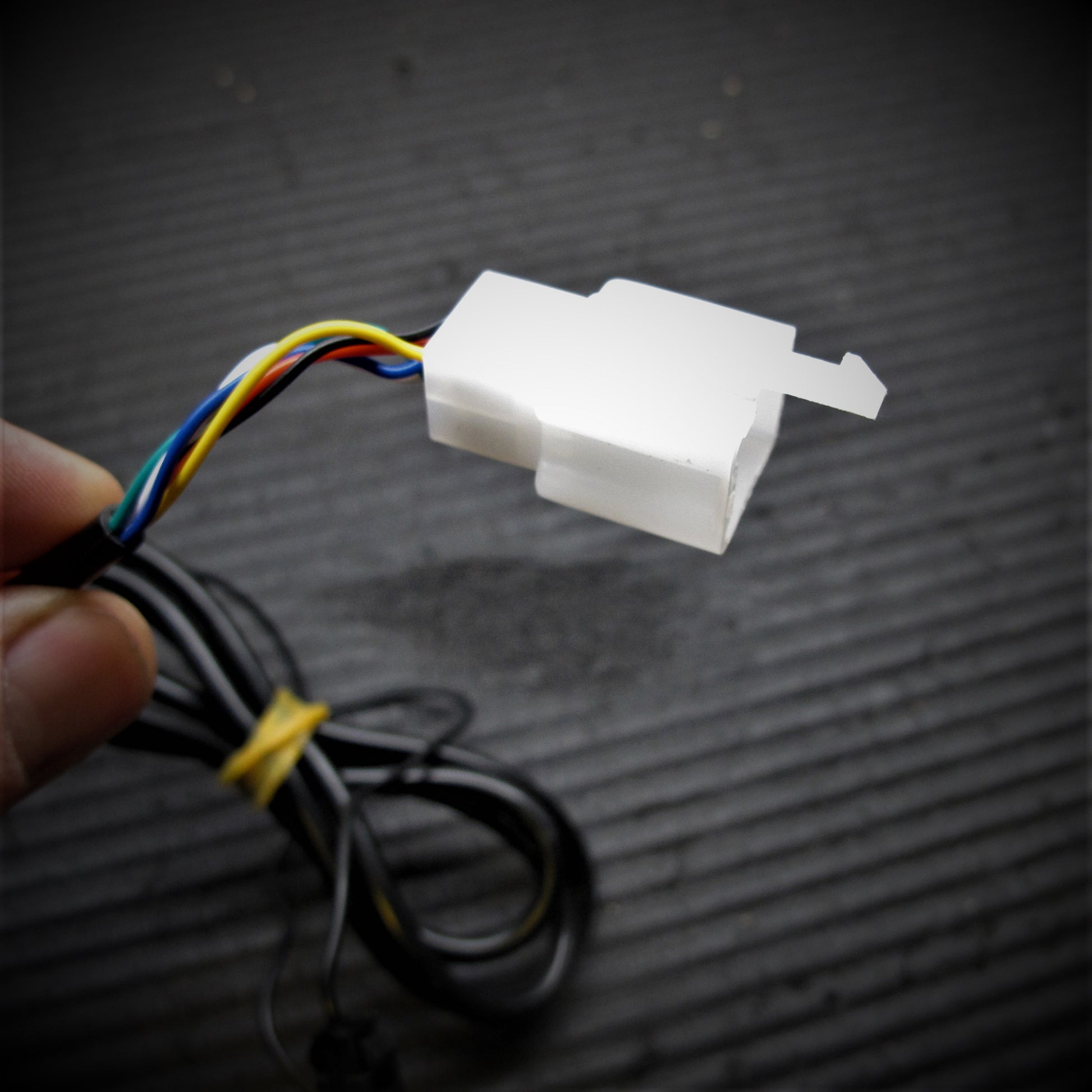

Reads from Connect Black to Ground, Red to Battery Power, and Yellow to Phase Wire

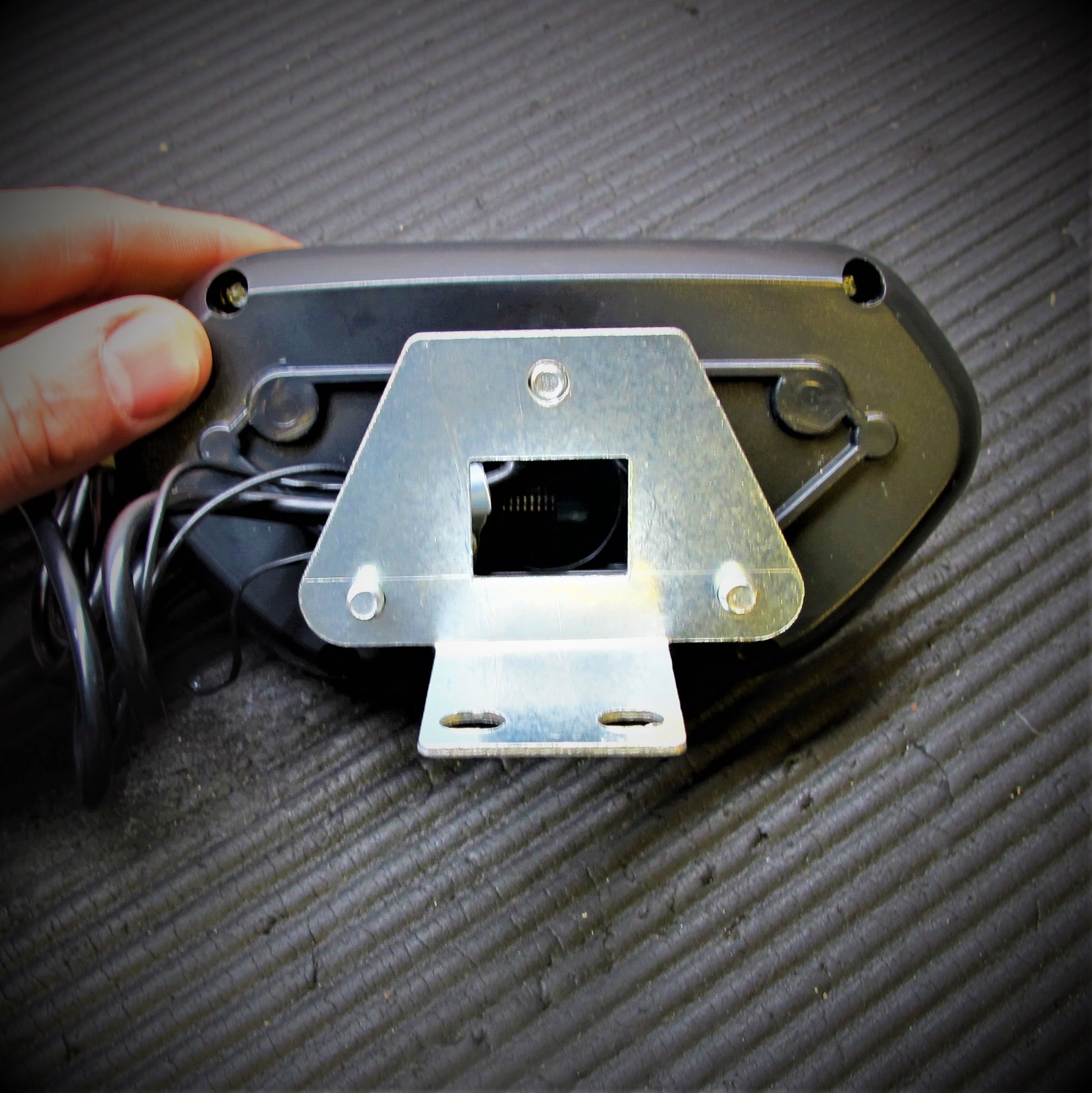

Adjust Potentiometer Inside on back of LCD Screen to adjust speed (requires pulling off plastic shell, 3 screws)

Can also connect to headlight and turn signals to display when they are active

Full Wiring Diagram provided with Purchase

Can also connect to Hall Sensor by soldering wire to H connection on board (pull off plastic shell)
