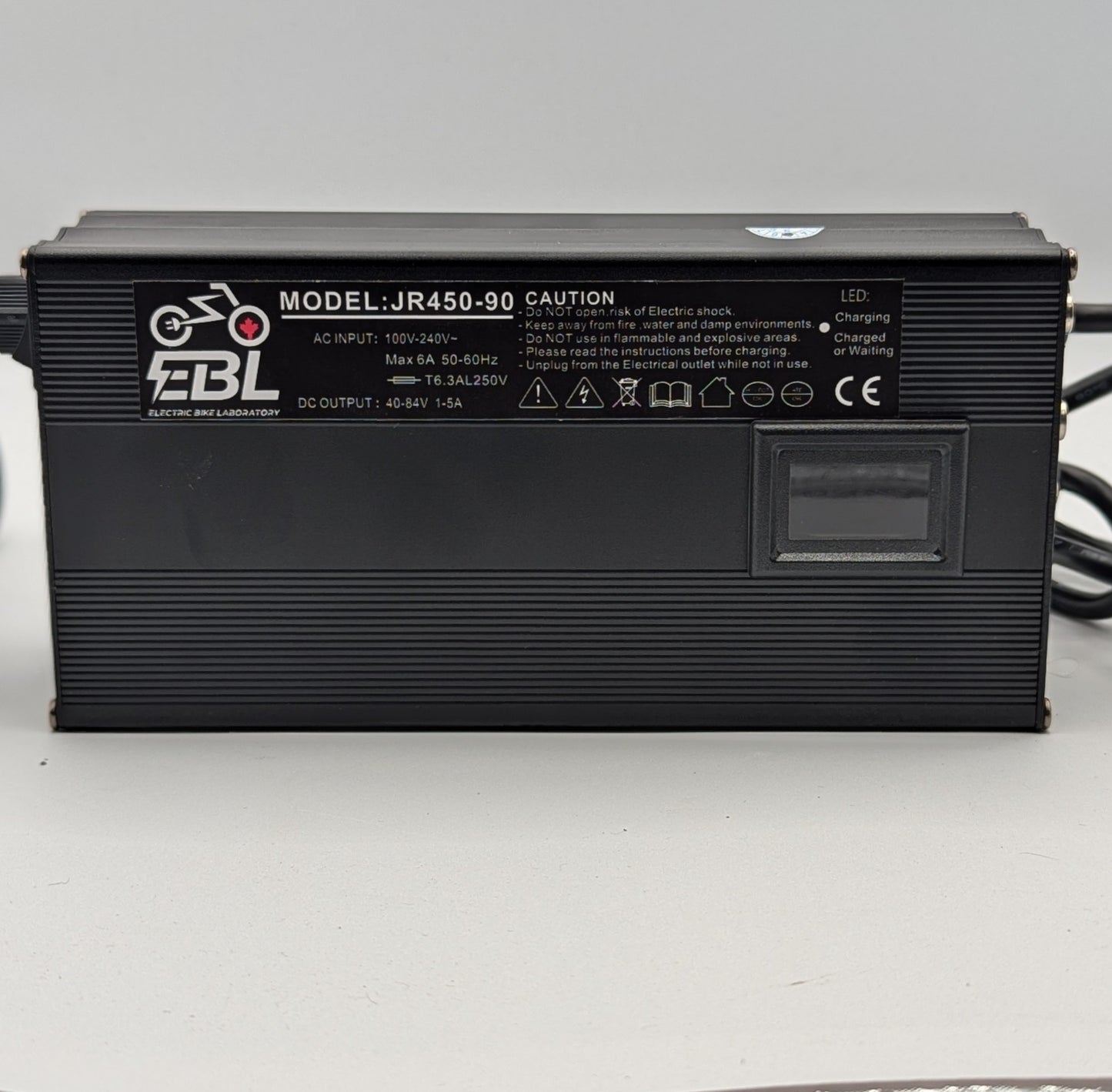

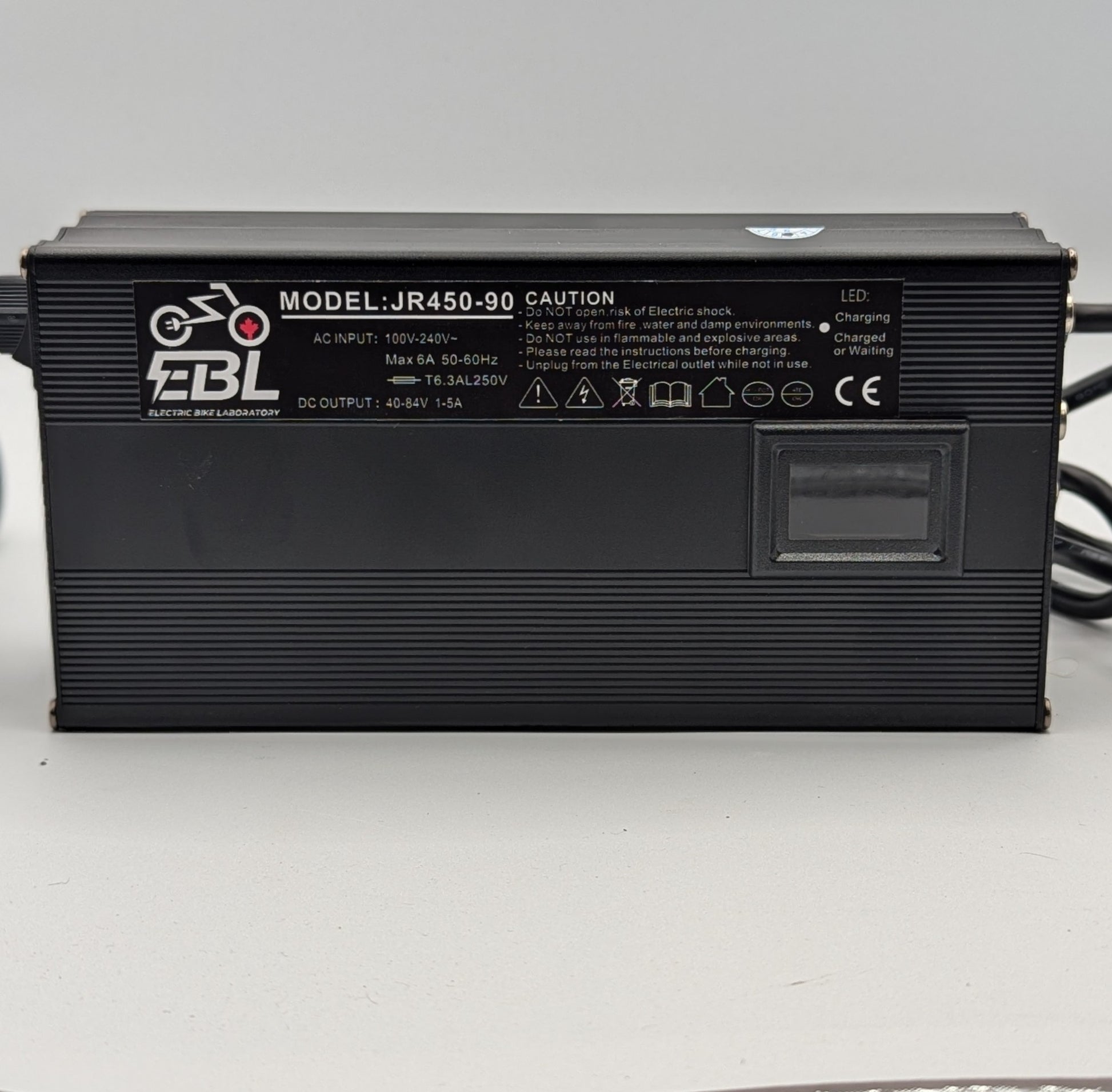

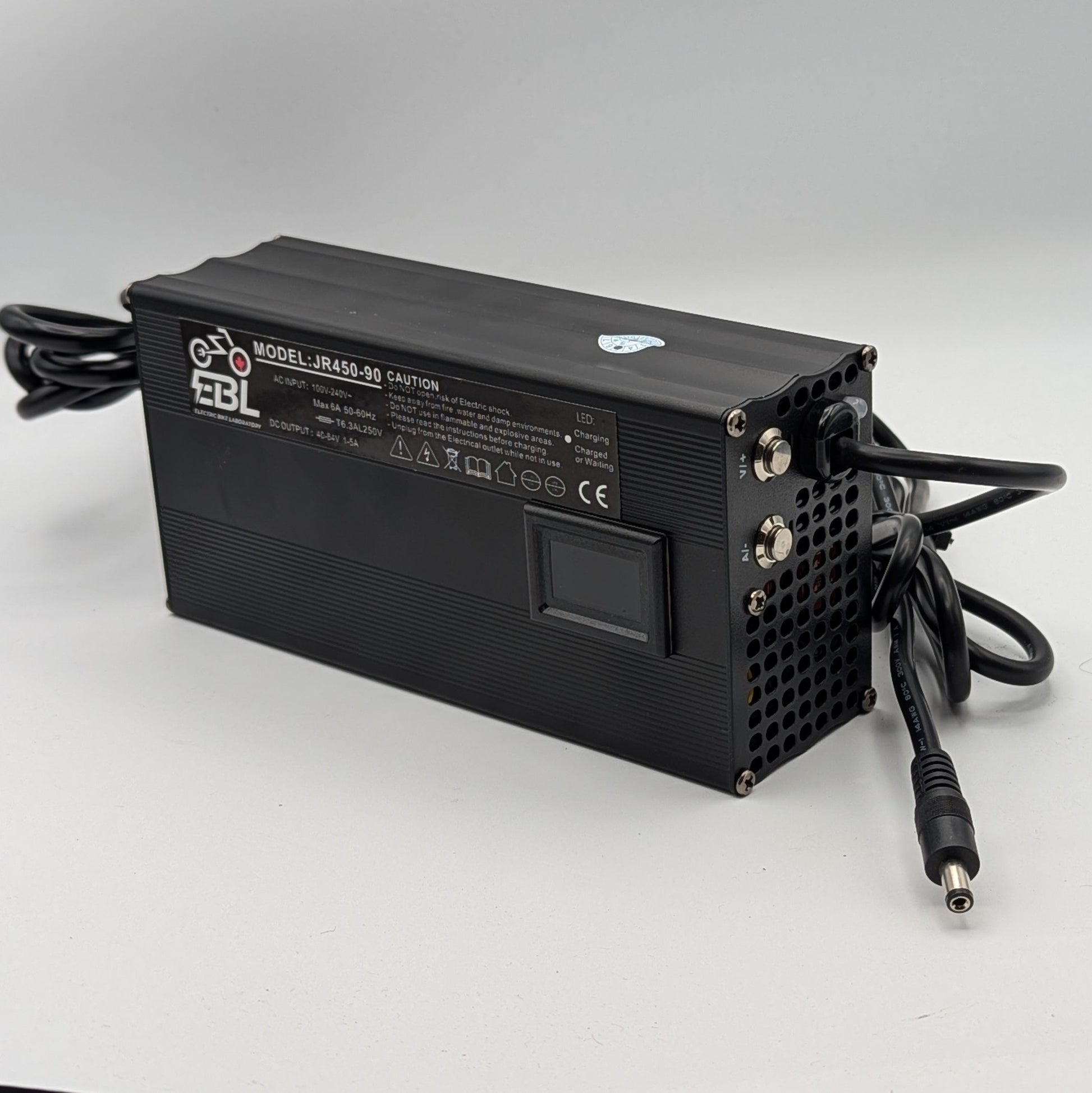

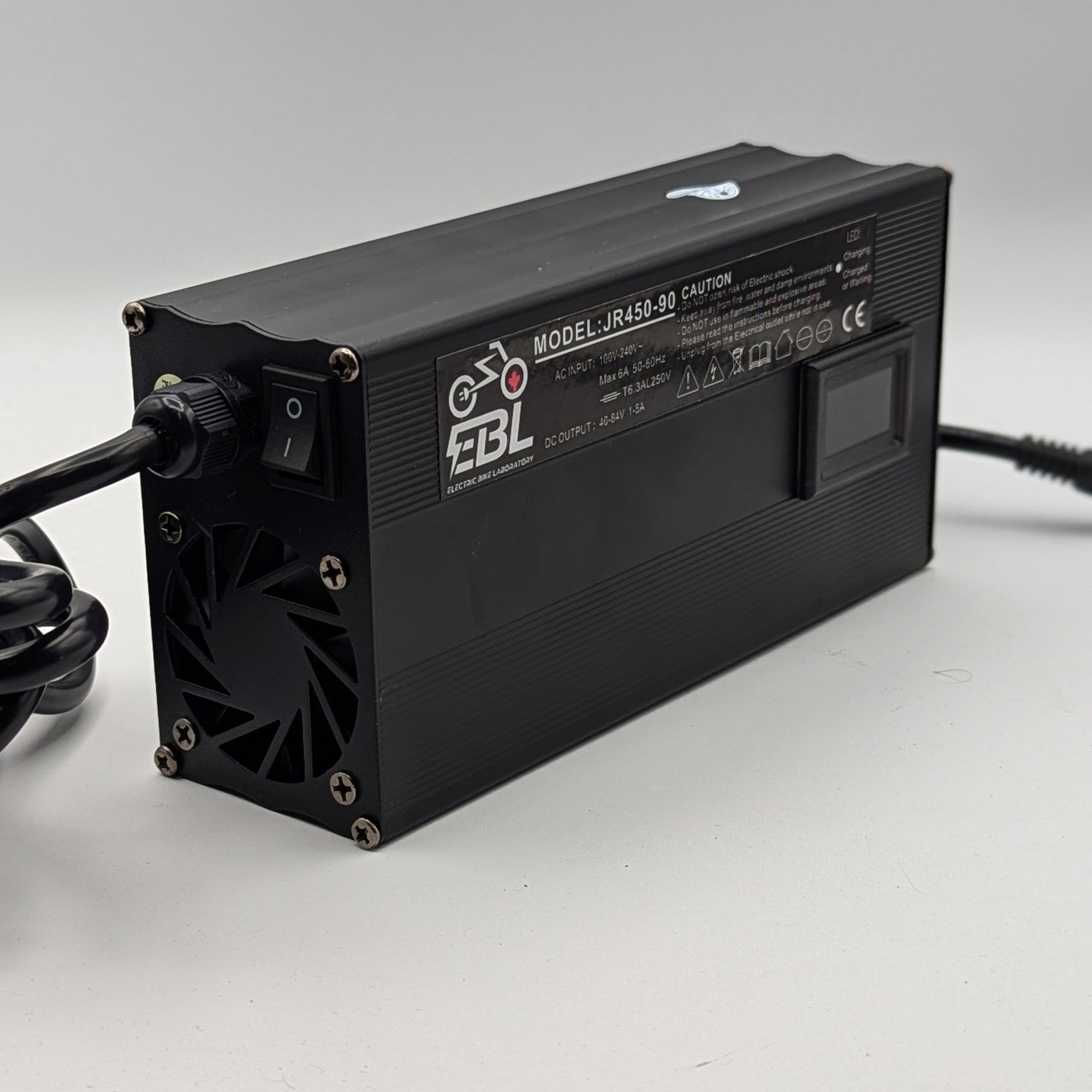

Universal Smart Charger - Standard Current Version (High Current available)

Charge any of your lithium batteries! Able to charge from 40V-84V. Allows to charge a 10S (36V) battery all the way up to a 20S (72V) battery.

Simple Hold the V Button to select voltage (go up and down with + and - ) and same for current.

Charge your batteries to 80 / 90 / 100 percent, and set current between 1A for trickle charge all the way up to 5A for faster charge!

LCD Display shows current voltage and selection.

DC Barrel 5.5x2.1mm (most common ebike connector). Ask us if you need an adapter.

Dimensions:
180mm Length x 90mm Width x 58mm Height

This is the charger that can do it all. We had these custom made specifically for our customers. All at a price point that makes sense.

How to use :

Turn On Switch (Charger Turns On)

1)  Set Voltage
Hold V/+ for 3 seconds

Choose Voltage Based on your Battery and Percentage (+ for higher, - for lower)

(ie 36V 90% = 41V)

2)  Set Current Level
Hold A/- for 3 seconds
Select Current (1-5) (+ for higher, - for lower)

3)  Plug Battery into Charger

Charger will read battery info, and will automatically stopped once it has reached target voltage
