ASI BAC855 Advanced Motor Controller

ASI BAC855 Advanced Motor Controller

Regular price $299.99 CAD
Regular price Sale price $299.99 CAD
Sale Sold out
Wiring Harness
View full details

For a custom harness, contact BEFORE PURCHASE.

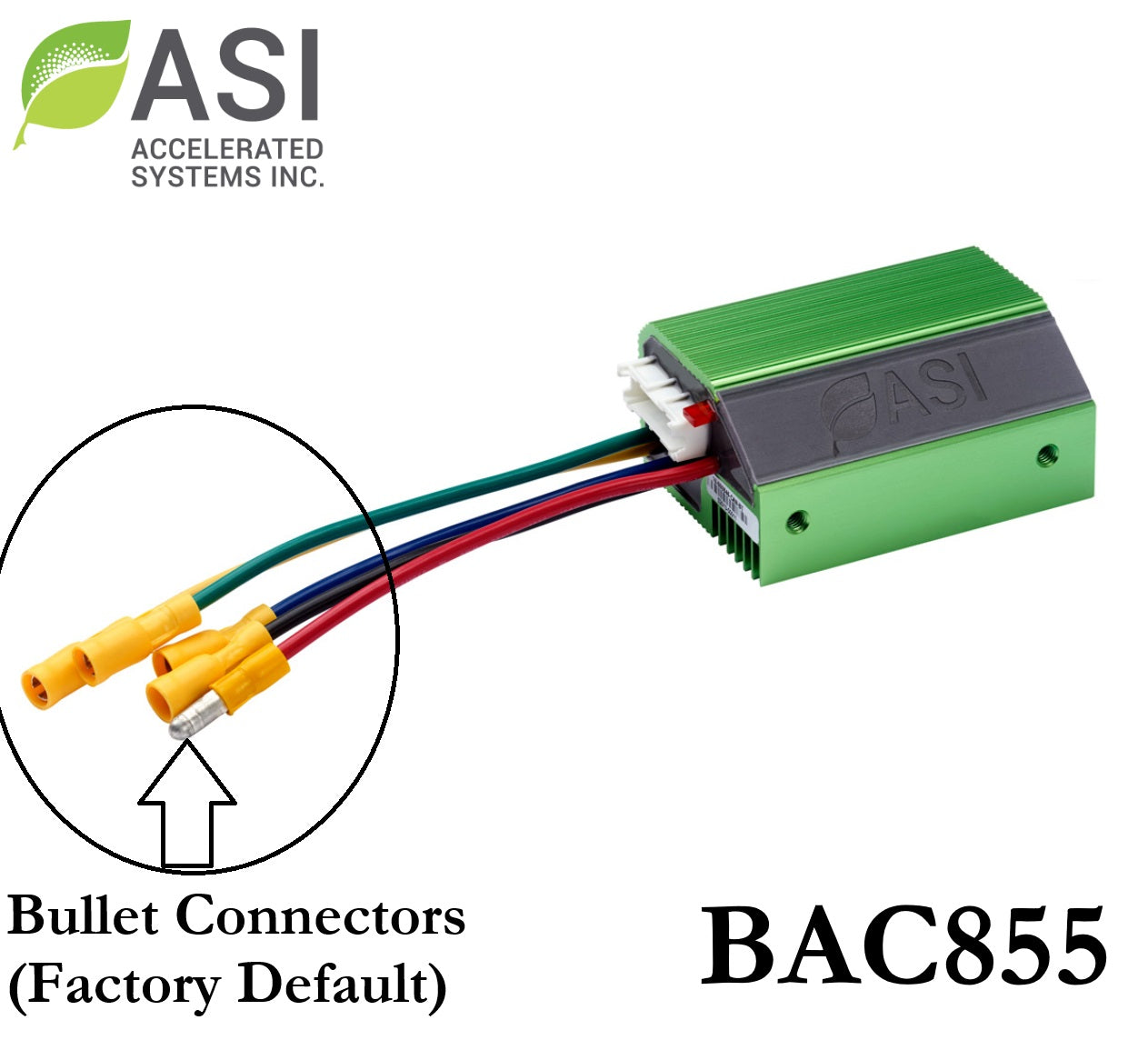

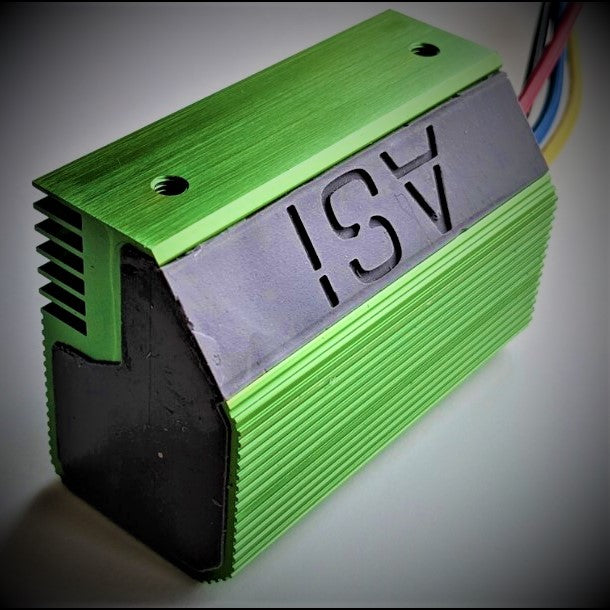

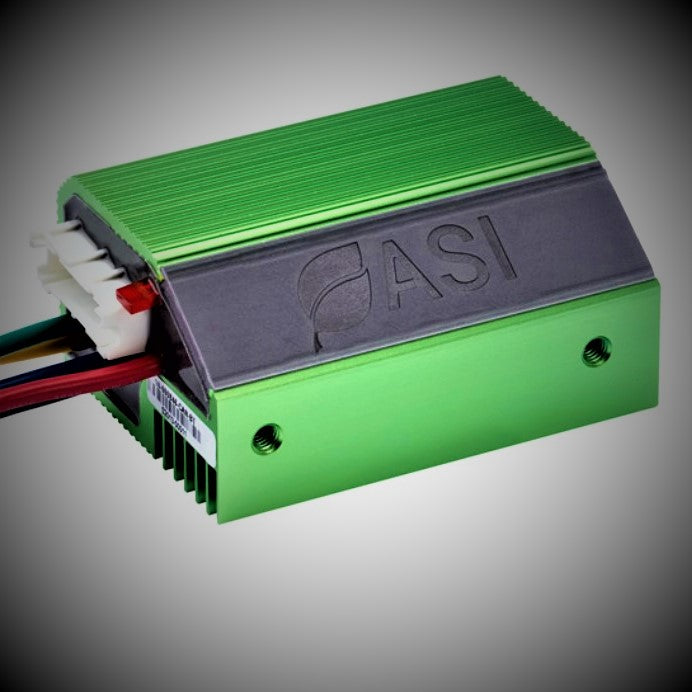

ASI BAC855 Advanced Motor Controller

This is a common controller used for upgrades on systems such as the BBSHD, Cyclone Mid Drive Motor Kit, Stealth Enduro Style EBikes, and many others. It has the ability to run a torque sensor, uses FOC (Field Oriented Control) for its control algorithm which is super smooth and highly efficient. And it has a very high power capability for its size. These controllers are extremely smooth!

NOTE: These controllers must be setup for the motor by us. We can not just send you a controller, it will need to be programmed for your motor. This can be remotely, but please contact us before purchase.

These are awesome for custom projects but if you are looking for the lowest priced controller to get your EBike going, these are definitely a premium product.

Questions? Feel free to ask us at

Details from ASI's website below;


Power: 800 Watts

Nom. Voltage 36 - 72V Volts
Nom. Current 70 Amps
Peak Current 90 Amps
Auto Tuning Yes
Sensorless Start Adaptive
IP Rating IP65 (IP67 with sealed connectors)
QC Verification 100% EOL Test under load
Additional Available Protocols TTL 485, Bluetooth, LIN, CAN
